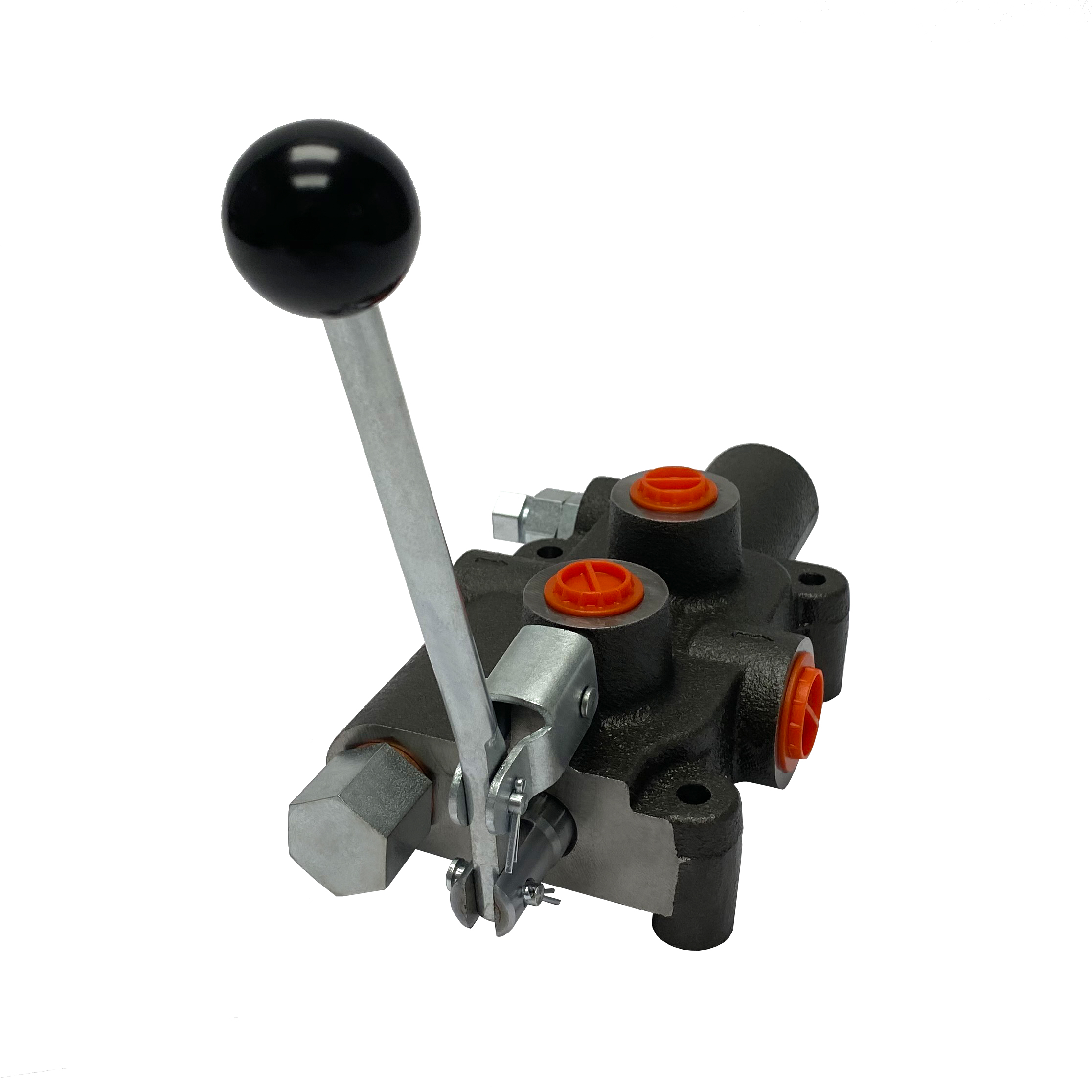

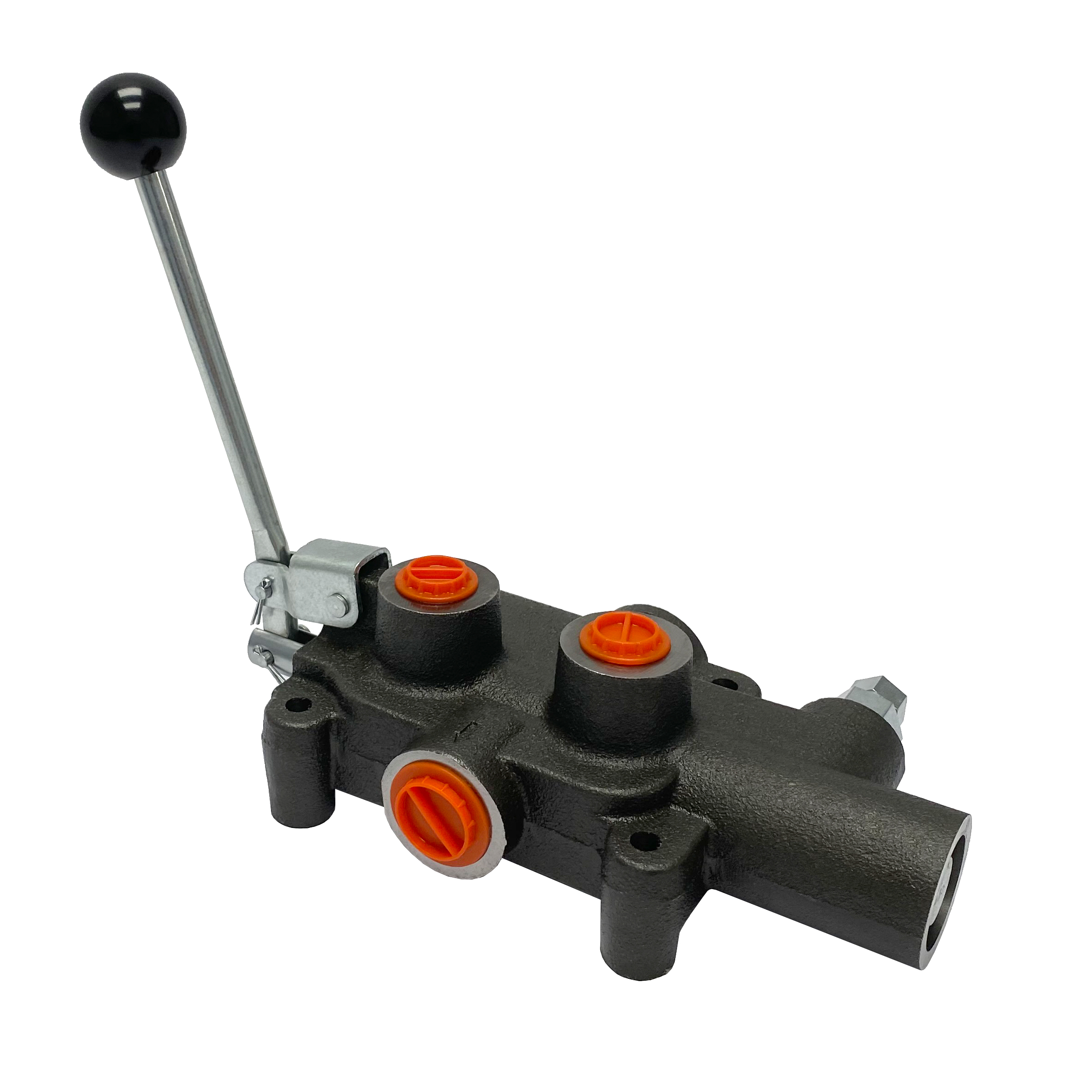

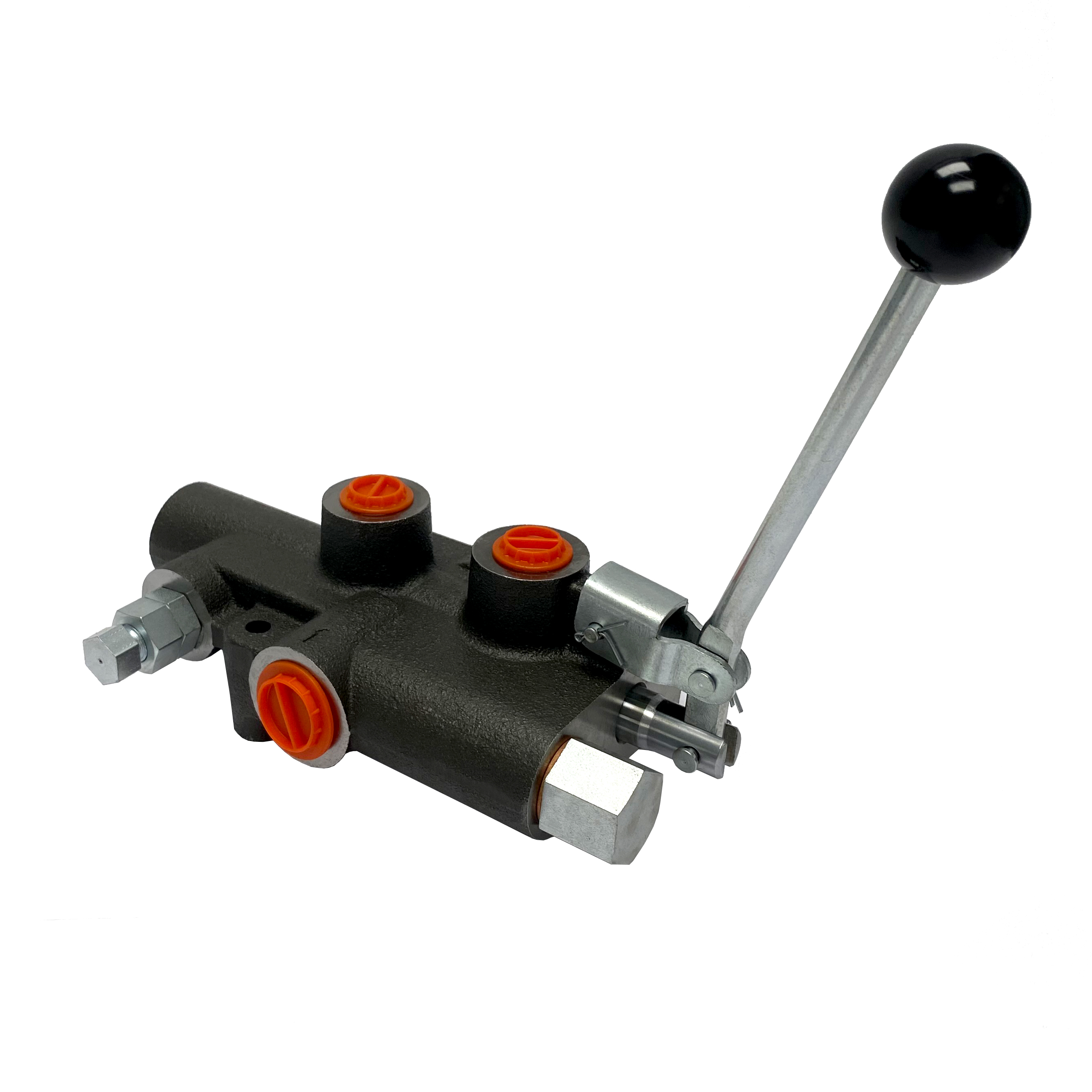

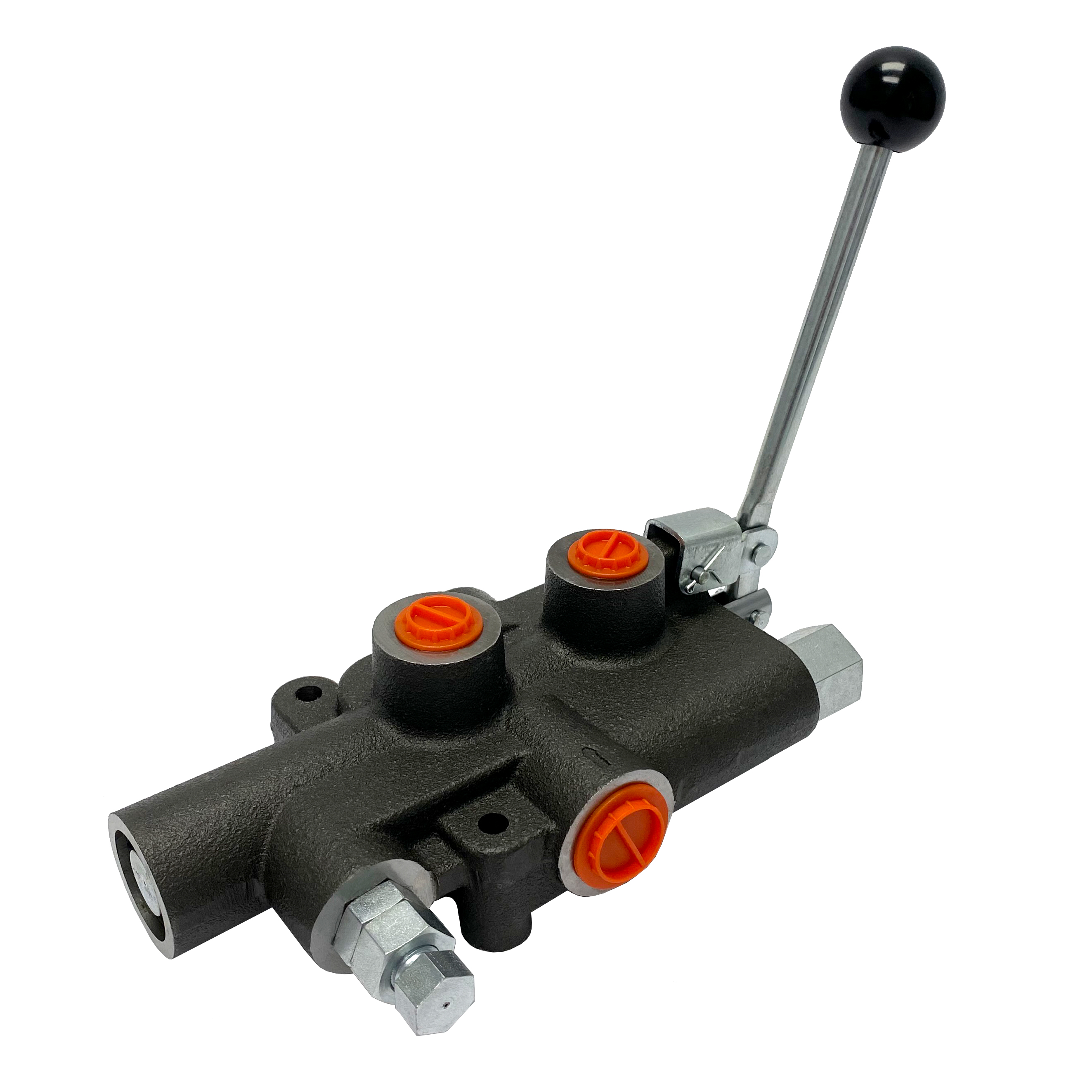

1 spool x 21 GPM hydraulic log splitter control valve
$139.00
Pay in 4 interest-free payments of $34.75SKU: HCV-LSS 1x21
| Spools : | 1 | Flow : | 21 GPM | Max Pressure : | 4600 PSI | Inlet Port : | SAE 12 | Operating Pressure : | 3600 PSI | Spool Type : | 4way 4pos Tandem Cntr | Outlet Port : | SAE 12 | Spool Action : | 4-pos with detent | Working Ports : | SAE 10 | Brand : | Badestnost | Operation : | Manual | Weight : | 10 LBs |
|---|---|
| GTIN : | 850016509819 |
Volume discounts
5+ PRICE EA -5%
$132.05
10+ PRICE EA -10%
$125.10
Out of stock
Out of stock
Description
Take control of your wood-splitting tasks with this heavy-duty 1-Spool, 21 GPM Hydraulic Control Valve. Engineered specifically for high-performance log splitters, it delivers reliable operation at
3600 PSI (maximum 4600 PSI) thanks to its rugged cast iron monoblock body.
This valve efficiently manages and directs hydraulic oil flow between pumps, cylinders, and motors, ensuring smooth, dependable performance in demanding applications.
Key Features & Benefits
- Automatic Safety Feature:Press Release Detent spool action automatically returns the valve to neutral once the cylinder completes its stroke, improving operator safety and extending system life.
- Adjustable Relief Protection:Adjustable relief setting from 1000–2000 PSI provides automatic system switch-off for added protection.
- Easy Installation: Supplied with a handle and designed for simple mounting using 2 × M8 bolts.
Technical Specifications
- Spool Type: 4 Way, 4 Position (Spring to Neutral / Spring to Center)
- Spool Action:4 Way, 4 Position Tandem Center with Spring to Neutral and Press Release Detent
- Ports: SAE ports for standard hydraulic connections
Free Ground Shipping within the Continental United States.
Made in Europe. 1 Year Warranty.
