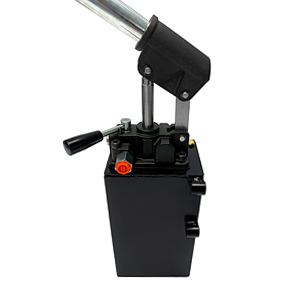

Magister Hydraulics is a hydraulic cylinder distributor with extensive experience in custom designed hydraulic cylinders and hydraulic components. We have anything from single, double acting or telescopic cylinders with Bore up to 7 inches to hydraulic pumps, valves, quick couplings, adapters & fittings. Magister Hydraulics cylinders are perfectly suitable for industries such as waste, forestry, transportation, agriculture, material handling, construction and oil & gas. At Magister Hydraulics we can design and deliver hydraulic cylinders no matter how complex they are. We provide a full service package in customization from design to delivery with European technology and American standards. Our clients trust us in providing expertise for hydraulics design, manufacturing quality and ongoing support.

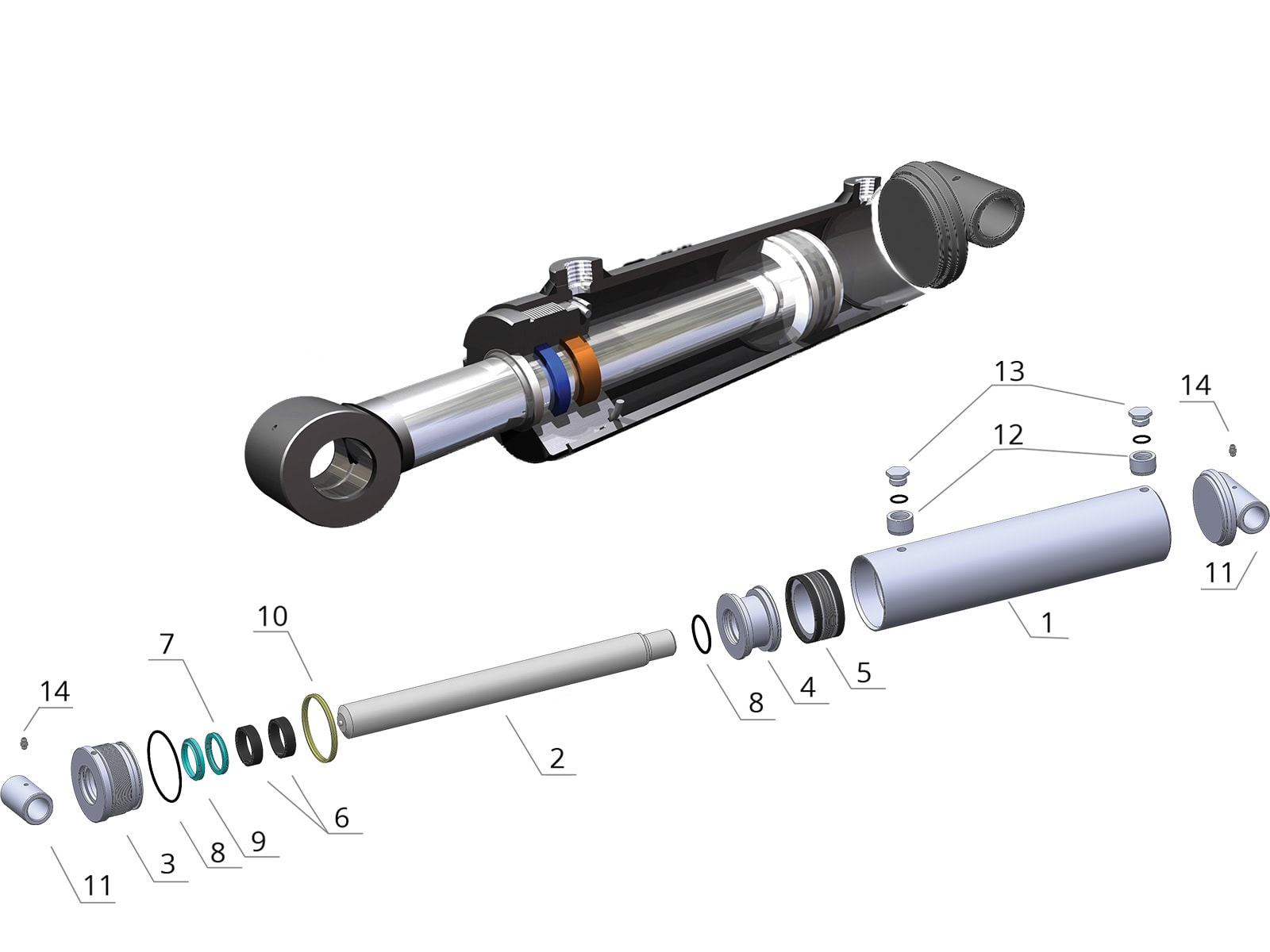

Hydraulic cylinders at Magister Hydraulics are manufactured by implementing European technologies and setting a new bar for US standards. Nylon glass guide rings and five component compact seals to ensure longevity of a hydraulic cylinder in comparison to other alternatives. See below exploded diagram.
1 Tube: High tensile honed cold drawn tube.
2 Rod: High tensile ground & polished hard chrome plated rod.
3 Gland: Precision threaded gland with wear rings for long life.
4 Piston: High tensile steel for heavy duty applications.
5 Clevis ends: Durable forged items.
6 Piston seals: Top quality five component compact seals for excellent performance.
7 Rod seals: Standard U-cup polyurethane rod seal with inner O-ring.
8 Guide rings: POM-C wear rings and polyurethane wiper.
9 Ports: SAE 8 O-rings.
10 Wiper: High quality polyurethane wiper.
11 Pins: High tensile steel zinc plated.
12 Clips: zinc plated steel.
13 Plugs: Port plugs with O-rings included.
14 Gland sealing O-rings.
Posted on Jun 17 2018HYDRAULIC CYLINDER CROSS TUBE 💪💪
Posted on Jun 16 2018☝In addition to rod buckling, bearing loads is another important consideration in the selection of a hydraulic cylinder. As the stroke length of a cylinder increases, the resultant bearing loads on the piston rod also become greater. To keep these bearing loads from exceeding design limitations stop tubes are usually used. Generally,...
Posted on Jun 15 2018✳️TIE-ROD HYDRAULIC CYLINDER
