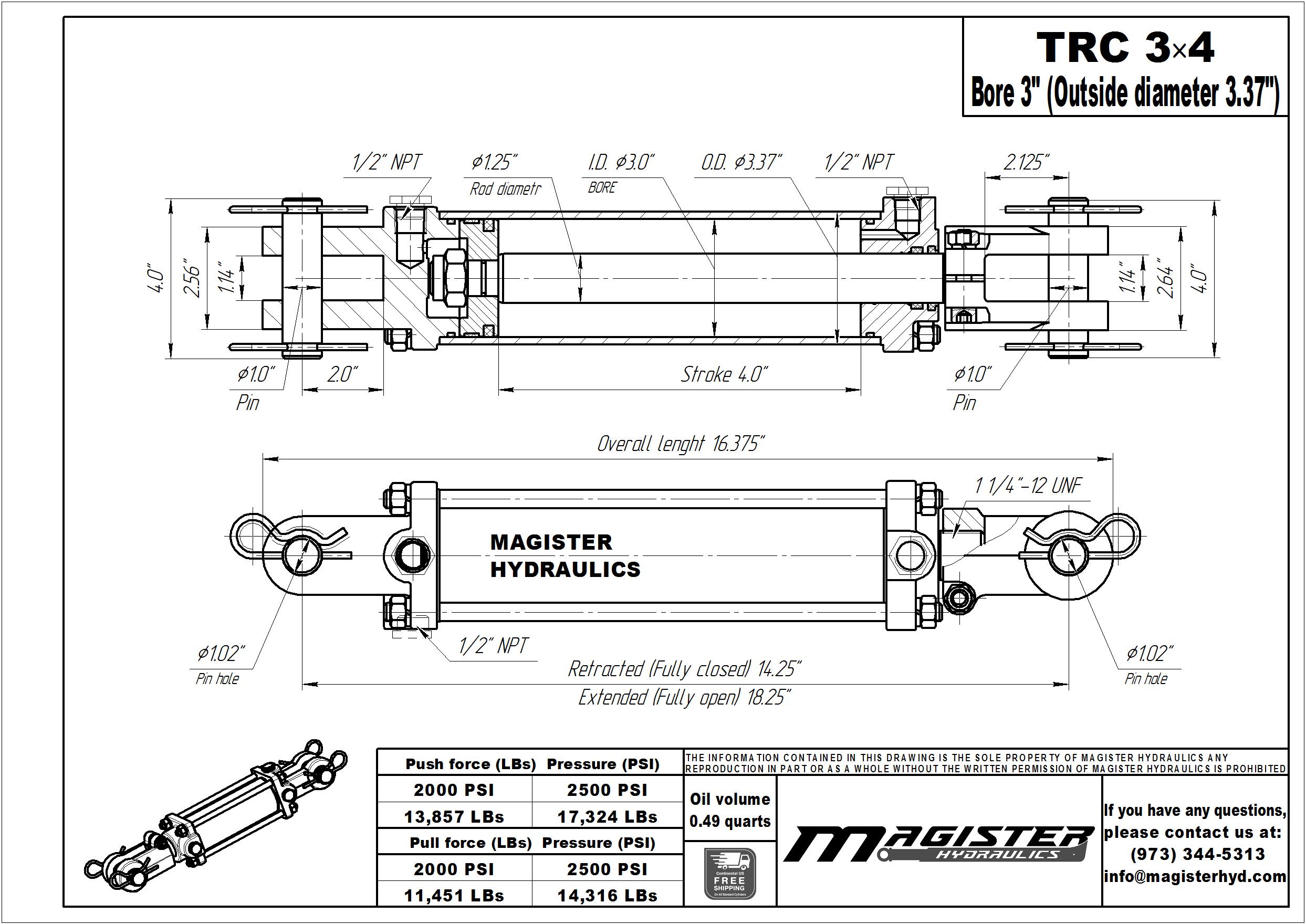

3" bore x 4" stroke tie rod hydraulic cylinder

• • • • – High load capacity: Cast iron clevis end, ⌀ 3.37″ honed cold-drawn tubing, ⌀ 1.25″ chrome-plated rod (steel 1045) with screw-on clevis on the rod end, and top-quality piston seals make it capable of handling heavy loads with a 4″ stroke.
    • • – Wide Range Hydraulic Applications:Manufacturing and automation, agriculture and farming equipment, construction, material handling, mining, automotive industry, industrial machinery, due to their versatility, durability, and cost-effectiveness of this tie-rod cylinder.
    • • – Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
    • • – High-Quality Construction: Designed with heavy-duty steel end caps, precision-machined tie rods, and honed steel tubing, ensuring long-lasting performance and easy maintenance.
    • • – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
    • • – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
    • • – Easy Maintenance: The bolted-together design allows for quick disassembly, making it simple to replace seals and components, extending the cylinder’s service life.
    • • – 2-year warranty
    • • – Same Day Free Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
    • • – Made in Europe.

Before purchase, please take the proper measurements:

• • – The diameter of the bore (please specify inside or outside measurement).

• • – The diameter of the rod and pin holes.

• • – The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.

• • – The width on each mounting end of the cylinder where the pins slide through.

How to Measure a Hydraulic Cylinder
