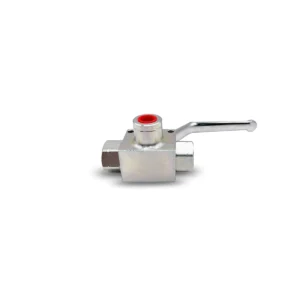

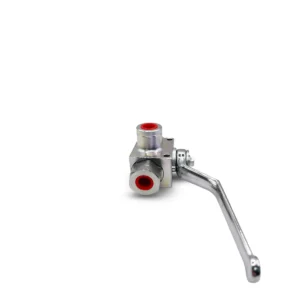

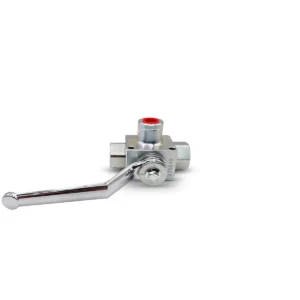

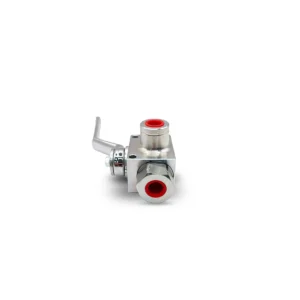

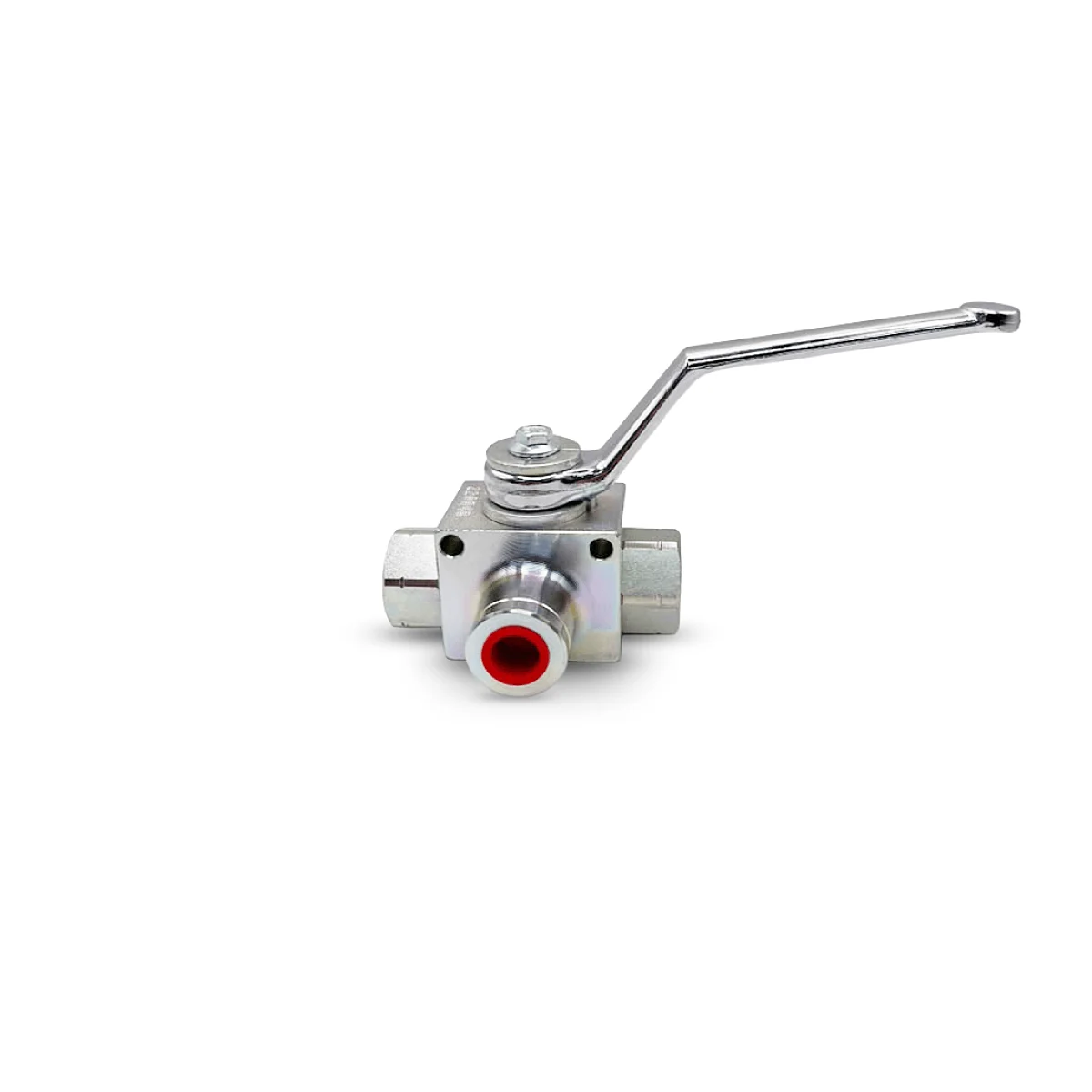

3 Way Ball Valve 1/4" NPT
$75.00
* Wholesale Discount is available for this product if you purchase 5 or more products.SKU: HV-BV-3W-4N
| Direction : | 3 Way | Max Pressure : | 7250 PSI | Working Ports : | 1/4" NPT | Brand : | Gemels | Weight : | 2 LBs |
|---|---|
| GTIN : | 854763008113 |
Volume discounts
5+ PRICE EA -5%
$71.25
10+ PRICE EA -10%
$67.50
In stock
29 in stock
Description
3 Way Ball Valve 1/4″ NPT. Ball valves provide reliable shut-off performance for high-pressure hydraulic and industrial systems. Built from carbon steel and rated for pressures up to 7250 PSI, they are well suited for demanding applications in agriculture, heavy industry, lifting equipment, the steel industry, and painting lines. Designed for high mechanical strength, dependable sealing, and continuous operation, these valves are ideal for controlling technical fluids in complex working environments. These valves are used to divert the inlet flow towards 2 alternative ports (L scheme).
- Body: zinc-plated steel.
- Internal parts: ground and chromium-plated steel.
- Seals: BUNA N standard and POM seals.
- Leakage: does not allow leakage.
CONNECTIONS:
Connect P to the pressure flow, A and B to the circuit ports where the flow has to be diverted to. With lever at 90° flow is connected in port A (position 1), with lever in line flow is connected in port B (position 2).
Made in Europe utilizing American standards.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe. 1 Year Warranty.
