$288.00

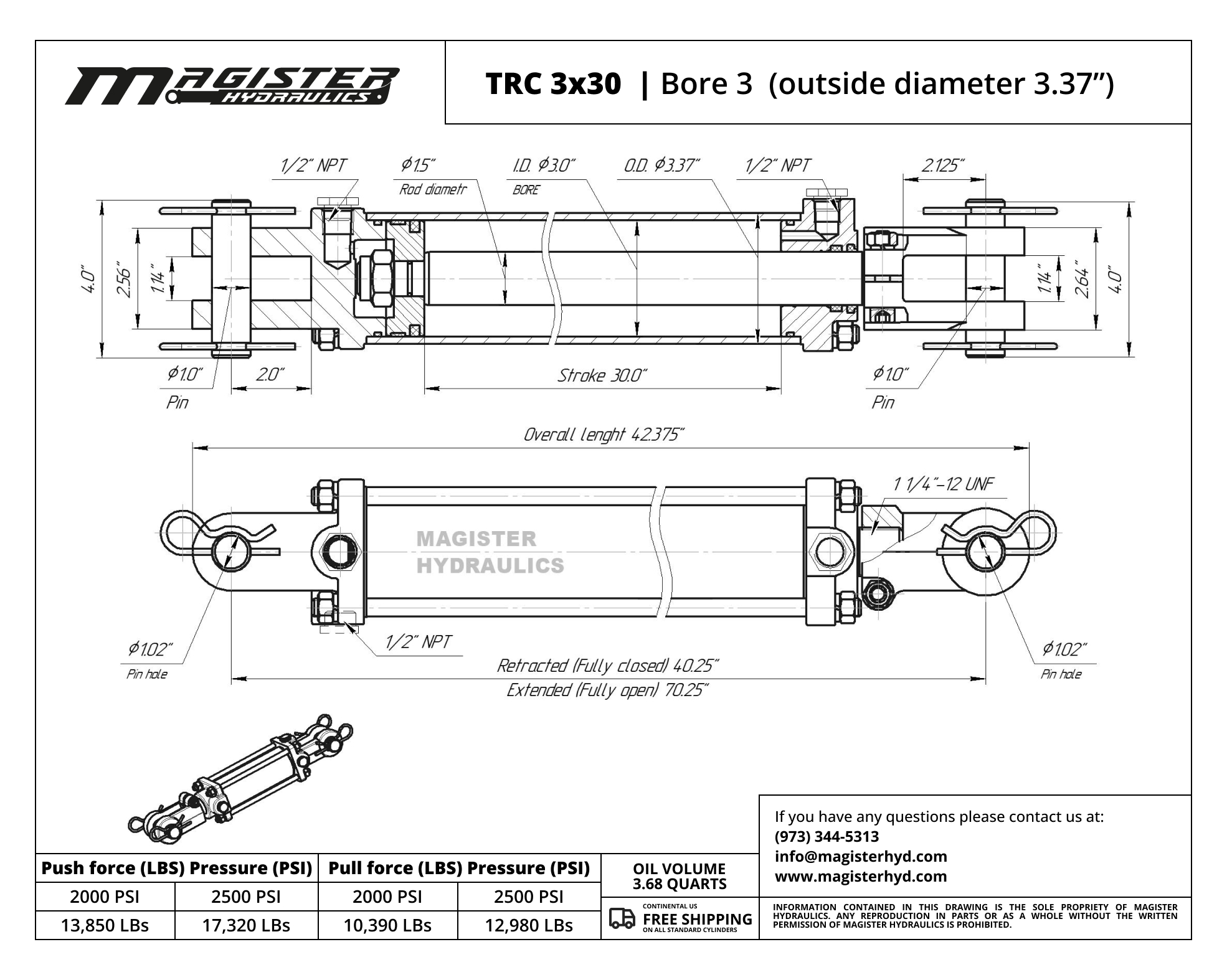

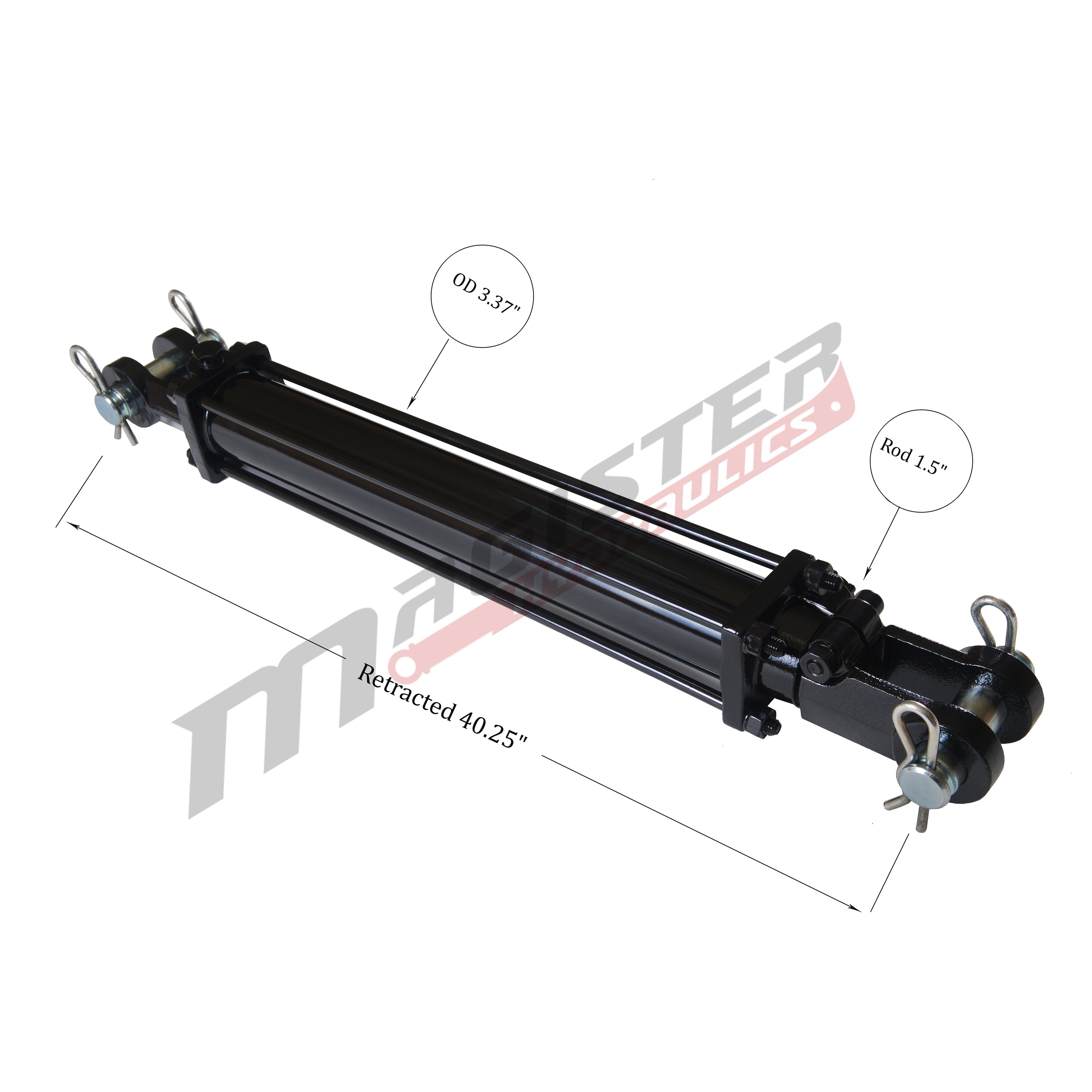

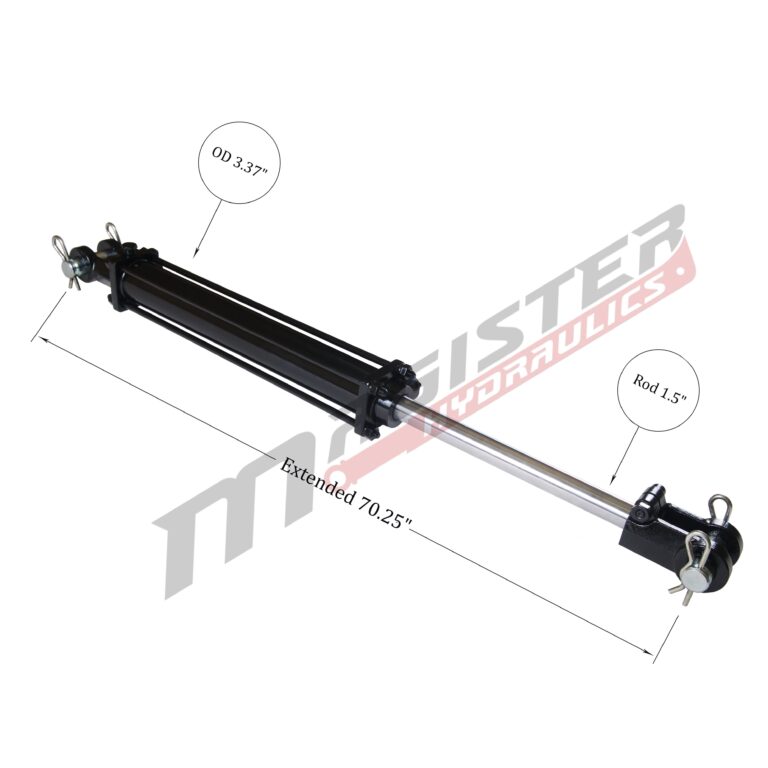

Bore : | 3 in | Outer Dia. (⌀) : | 3.37 in | Stroke : | 30 in | Rod Dia. (⌀) : | 1.5 in | Port Size : | 1/2" NPT | Pin Dia. (⌀) : | 1 in | Extended : | 70.25 in | Retracted : | 40.25 in | Overall length : | 42.375 in | Pressure : | 2500 PSI | Column Load : | 11,240 LBs | Oil Volume : | 3.68 QTs | Brand : | Magister Hydraulics | Design : | Tie Rod | Rod Type : | Chrome Plated | Rod End : | Clevis | Action : | Weight : | 53 LBs |
---|---|
GTIN : | 850054386403 |
Possible Alternatives: WCL 3x30
Out of stock

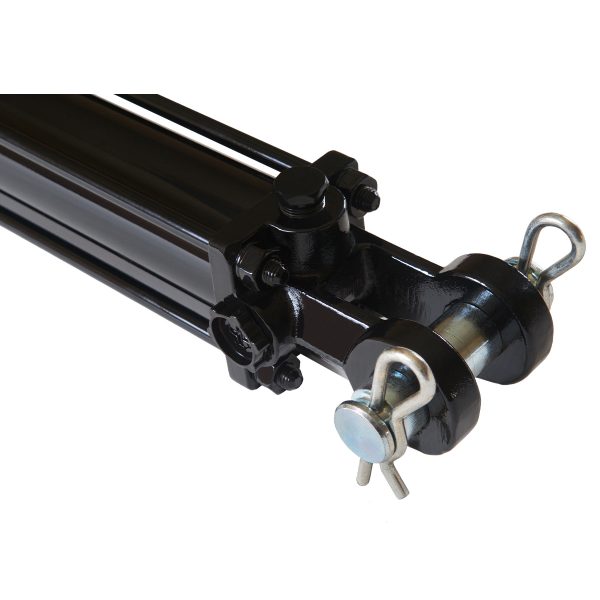

Designed for Maximum Performance and Durability, the heavy-duty Tie-Rod Hydraulic Cylinder is engineered to withstand the toughest jobs in agriculture, construction, and industrial equipment. The Magister Hydraulics Tie-Rod Double Acting Hydraulic Ram features a 3 inch bore and 30 inch stroke, built with a durable tie-rod design for superior strength and reliability. This construction ensures easy maintenance and long-lasting performance, making it an affordable and high-quality alternative to OEM hydraulic rams. The tie-rod cylinders are ideal for a wide range of low-pressure agriculture and construction applications, including waste management, recycling, mobile, transportation, insudstial, and material handling.
Key Features:
Before purchase, please take the proper measurements:
