2 bore x 24 stroke hydraulic cylinder, tie rod double acting cylinder | Magister Hydraulics

2" bore x 30" stroke tie rod hydraulic cylinder

Name: 2" bore x 30" stroke tie rod hydraulic cylinder
SKU: TRC 2x30
Availability: InStock
Rating: 4.75 (5 reviews)

$200.00

Pay in 4 interest-free payments of $50.00

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: TRC 2x30

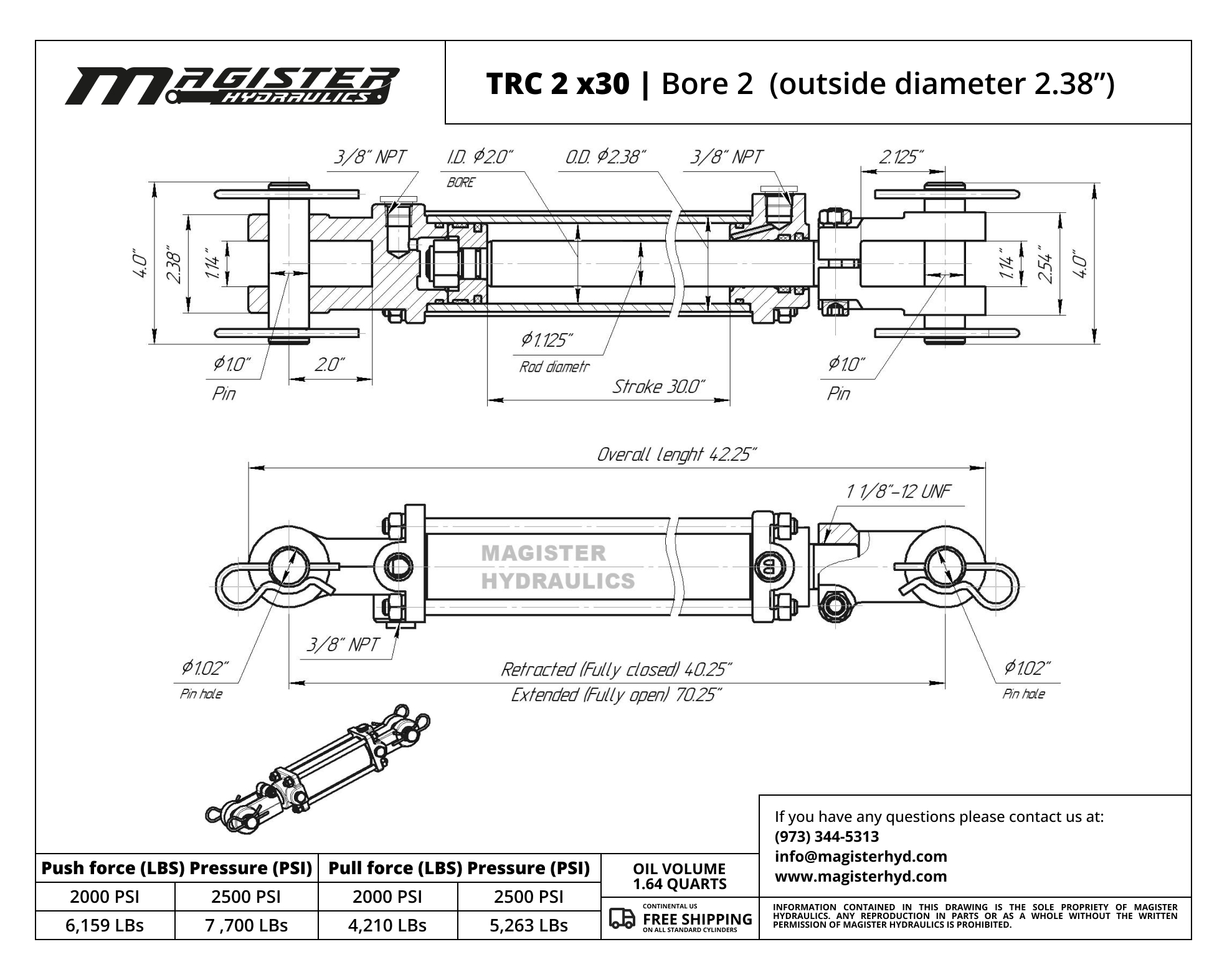

Bore :	2 in
Outer Dia. (⌀) :	2.38 in
Stroke :	30 in
Rod Dia. (⌀) :	1.125 in
Port Size :	3/8" NPT
Pin Dia. (⌀) :	1 in

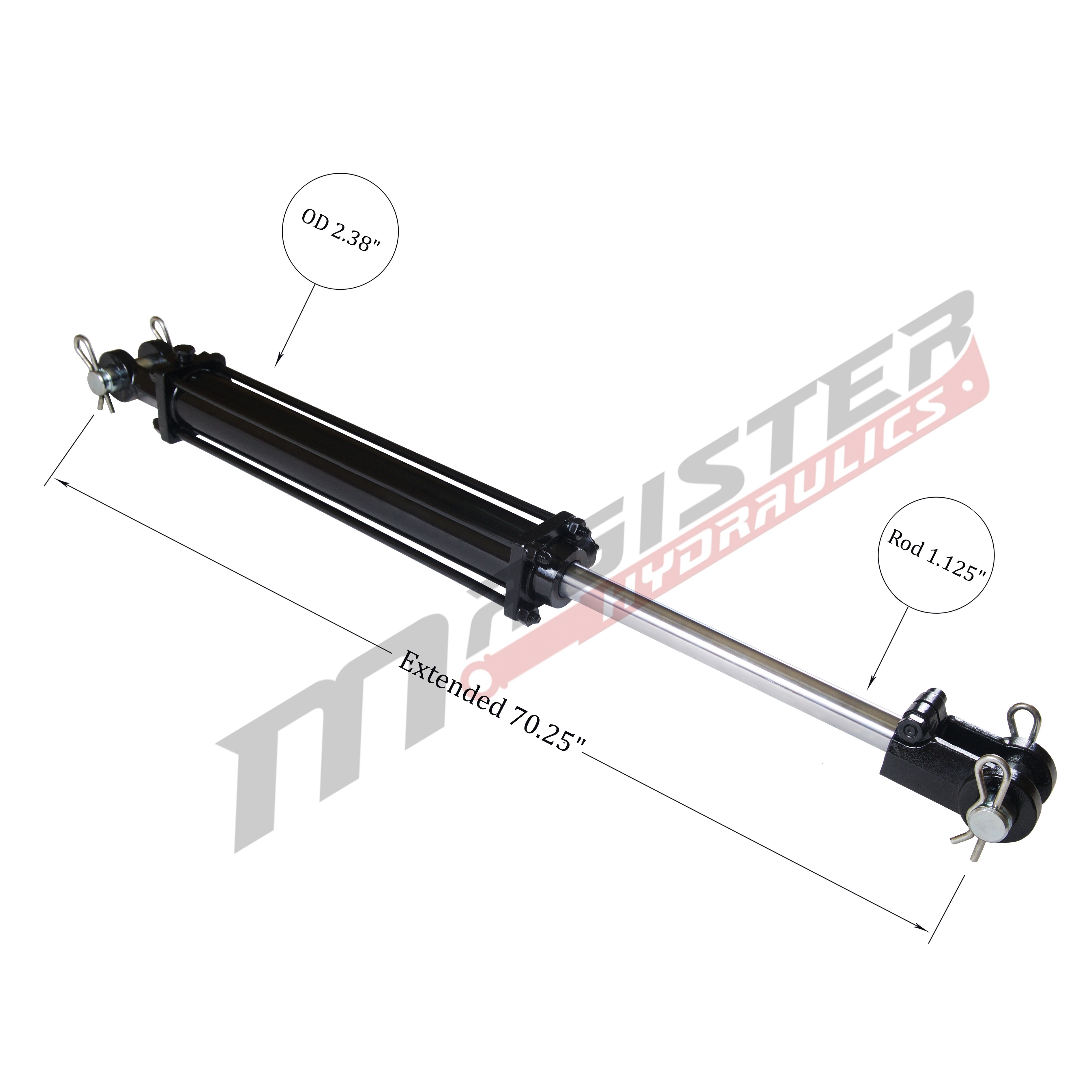

Extended :	70.25 in

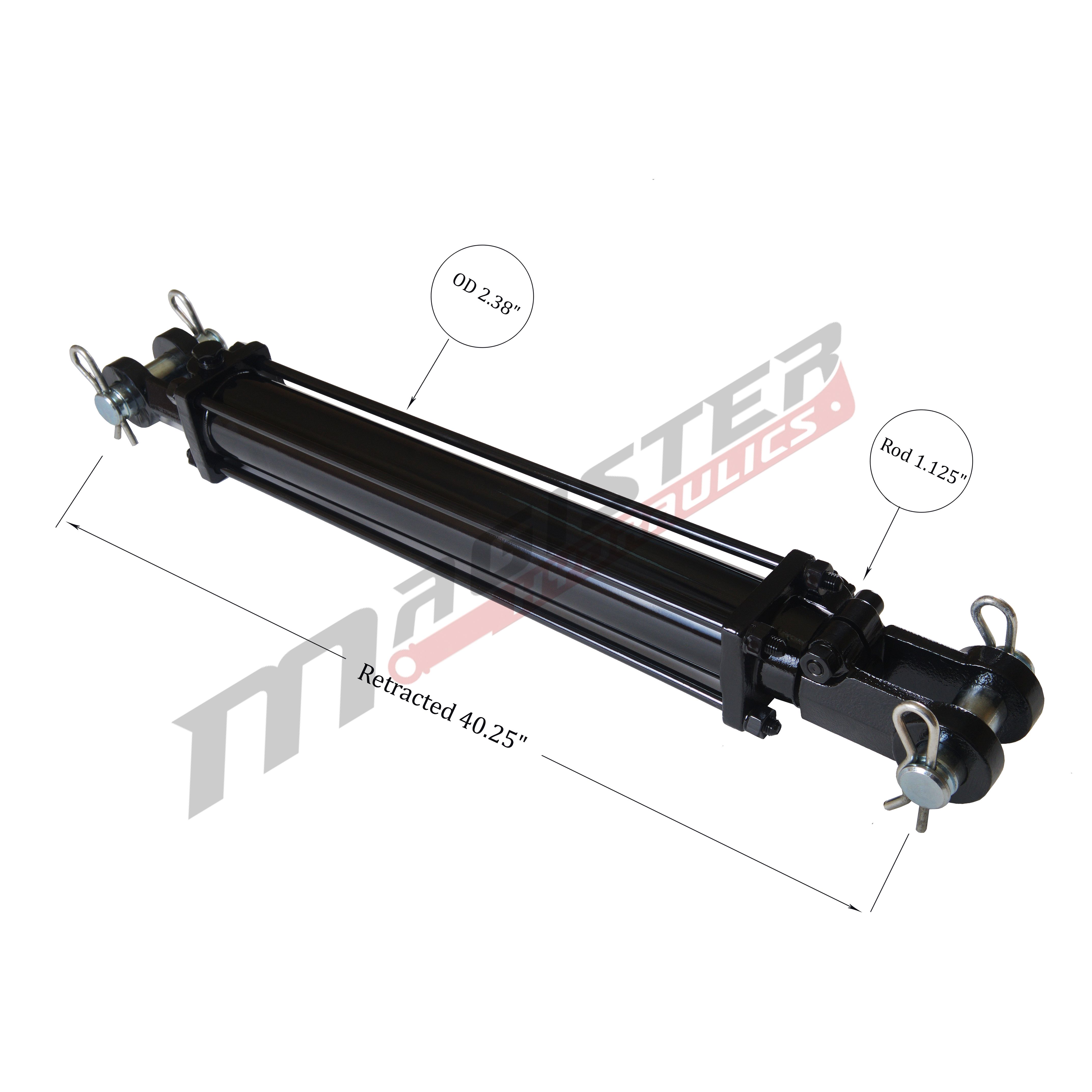

Retracted :	40.25 in
Overall length :	42.25 in
Pressure :	2500 PSI
Column Load :	3,550 LBs
Oil Volume :	1.64 QTs
Brand :	Magister Hydraulics
Design :	Tie Rod
Rod Type :	Chrome Plated

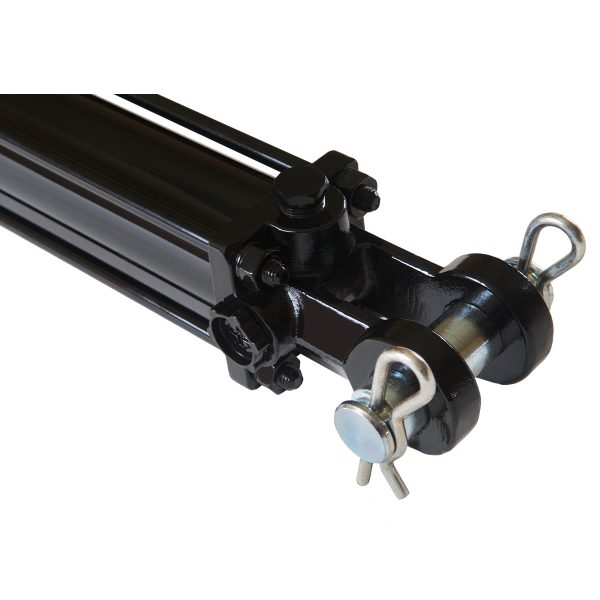

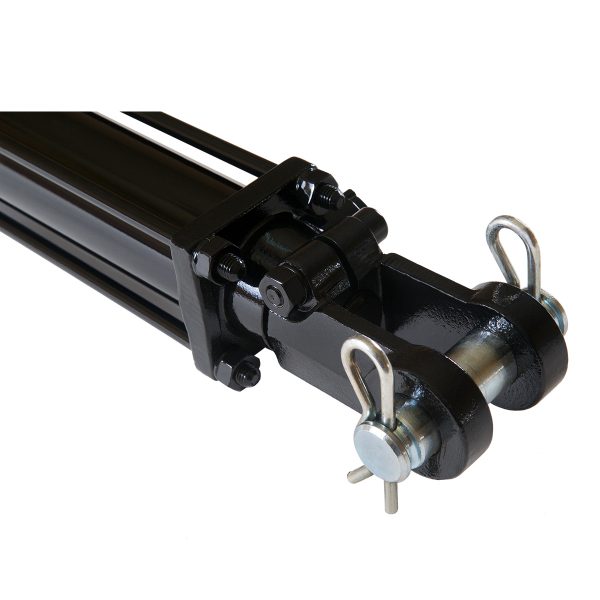

Rod End :	Clevis
Action :	Double Acting
Weight :	35 LBs
GTIN :	850054386366

SKU: TRC 2x30 Categories: 2" Bore Tie Rod, Hydraulic Cylinders, Tie Rod Hydraulic Cylinders Brand: Magister Hydraulics

Volume discounts

4+ PRICE EA -5%

$190.00

8+ PRICE EA -10%

$180.00

In stock

25 in stock

Description

Designed for Maximum Performance and Durability, the heavy-duty Tie-Rod Hydraulic Cylinder is engineered to withstand the toughest jobs in agriculture, construction, and industrial equipment. The Magister Hydraulics Tie-Rod Double Acting Hydraulic Ram features a 2 inch bore and 30 inch stroke, built with a durable tie-rod design for superior strength and reliability. This construction ensures easy maintenance and long-lasting performance, making it an affordable and high-quality alternative to OEM hydraulic rams. The tie-rod cylinders are ideal for a wide range of low-pressure agriculture and construction applications, including waste management, recycling, mobile, transportation, insudstial, and material handling.

Key Features:

- - - – High load capacity: Cast iron clevis end, ⌀ 2.38″ honed cold-drawn tubing, ⌀ 1.125″ chrome-plated rod (steel 1045) with screw-on clevis on the rod end, and top-quality piston seals make it capable of handling heavy loads with a 30″ stroke.
  - - – Wide Range Hydraulic Applications:Manufacturing and automation, agriculture and farming equipment, construction, material handling, mining, automotive industry, industrial machinery, due to their versatility, durability, and cost-effectiveness of this tie-rod cylinder.
  - - – Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
  - - – High-Quality Construction: Designed with heavy-duty steel end caps, precision-machined tie rods, and honed steel tubing, ensuring long-lasting performance and easy maintenance.
  - - – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
  - - – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
  - - – Easy Maintenance: The bolted-together design allows for quick disassembly, making it simple to replace seals and components, extending the cylinder’s service life.
  - - – 2-year warranty
  - - – Same Day Free Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
  - - – Made in Europe.
