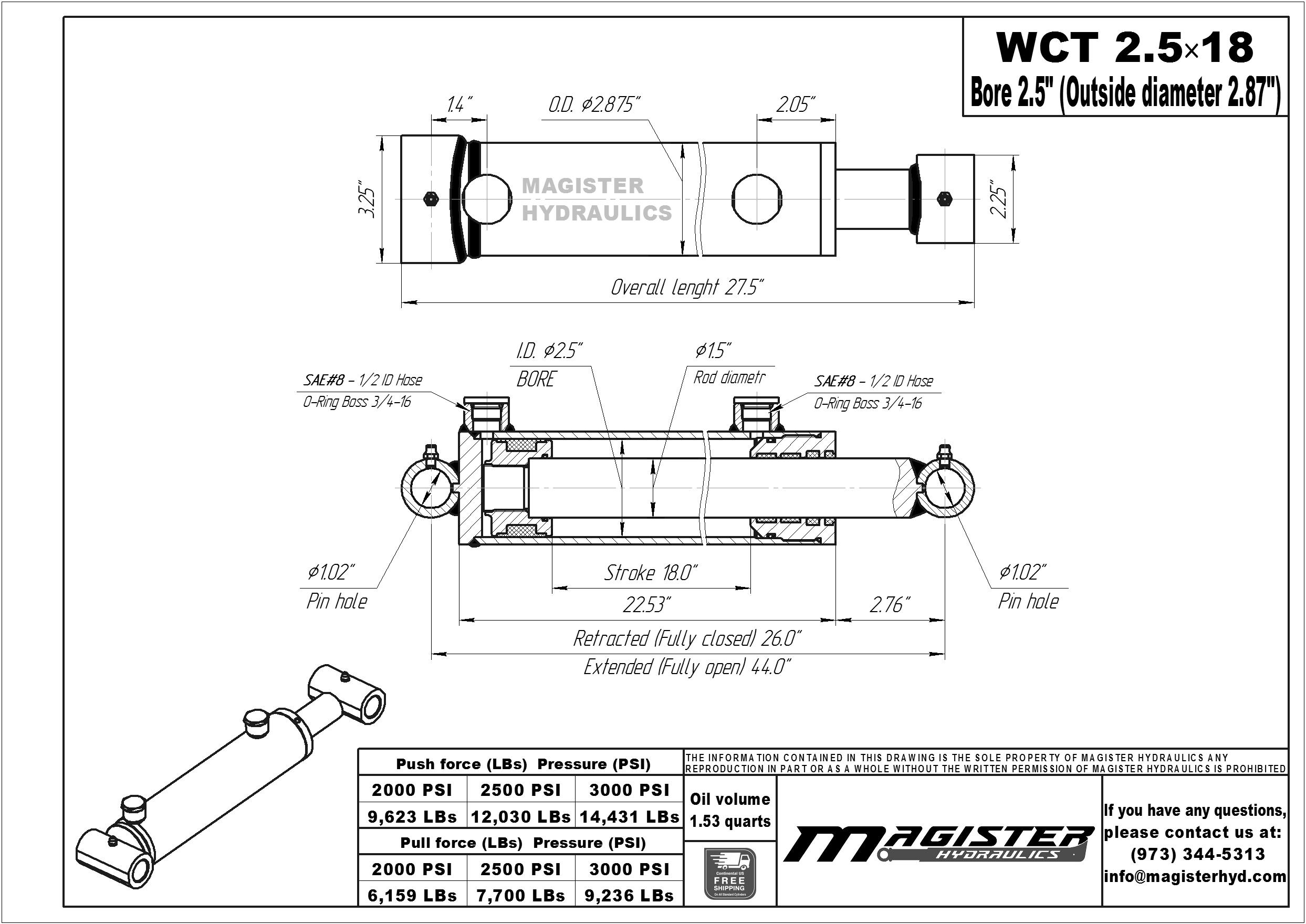

2.5" bore x 18" stroke cross tube hydraulic cylinder

• • • • – Extreme load capacity: Welded cross tube ends, ⌀ 2.875″ honed cold-drawn tubing, ⌀ 1.5″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 18″ stroke.
    • • – Wide Range Hydraulic Applications: forklifts, backhoes, front end loaders, tractors, excavators, ensuring reliable operation in harsh environments thanks to the usage of this cross tube cylinder.
    • • – Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
    • • – High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
    • • – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
    • • – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
    • • – Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
    • • – 2-year warranty
    • • – Same Day Free Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
    • • – Made in Europe.

Before purchase, please take the proper measurements:

• • – The diameter of the bore (please specify inside or outside measurement).

• • – The diameter of the rod and pin holes.

• • – The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.

• • – The width on each mounting end of the cylinder where the pins slide through.

How to Measure a Hydraulic Cylinder
