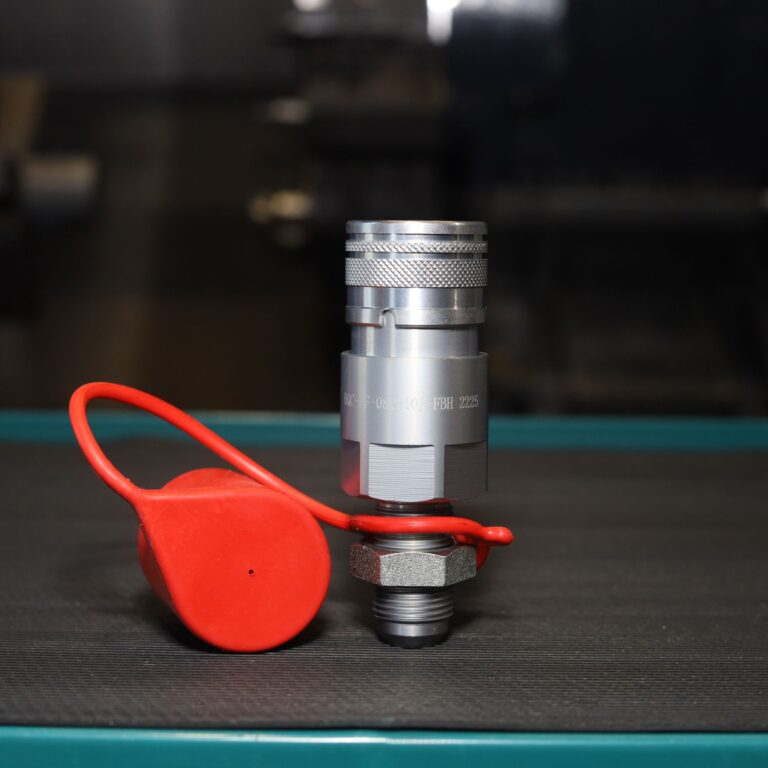

1/2″ Flat Face Hydraulic Quick Couplers Female - 5/8″ JIC Port Bulkhead Mount

Upgrade your hydraulic system with this 1/2″ Flat Face Hydraulic Quick Disconnect Female Fitting with 5/8″ JIC #10 (37° Flare) (7/8″-14 UNF Thread) Bulkhead Mount. Designed for leak-free performance, these couplers deliver reliable connections in high-pressure applications without fluid loss or contamination.

Built from hardened steel with anti-corrosion plating, this set is engineered to withstand daily use in demanding environments. Max pressure up to 6,300 PSI and 23.8 GPM flow, it provides the strength and efficiency professionals depend on.

The flat-face design makes it easy to connect and disconnect under pressure while reducing spillage, ensuring a cleaner, safer hydraulic system. Perfect for use with skid steers, tractors, loaders, and other heavy equipment.

Key Features:

• Leak-Free Performance: Flat face design significantly reduces fluid loss and air entry, maintaining system integrity and cleanliness.
• High-Pressure Capability: Rated up to 5,075 PSI with a maximum flow rate of 12 GPM for efficient hydraulic operations.
• Durable Construction: Made from hardened carbon steel with zinc-nickel plating for superior corrosion resistance and long-lasting durability.
• Easy Operation: Single-handed push-connect design allows for quick, effortless connections without special tools.
• Enhanced Safety: Nipple seal resists blow-outs and locking sleeve prevents accidental disconnections.
• Universal Compatibility: Fully interchangeable with other ISO 16028 standard couplings, ensuring seamless integration across various hydraulic systems

Highly competitive pricing. Covers Included

Compatible with many hydraulic tools and equipment

1 Year Warranty

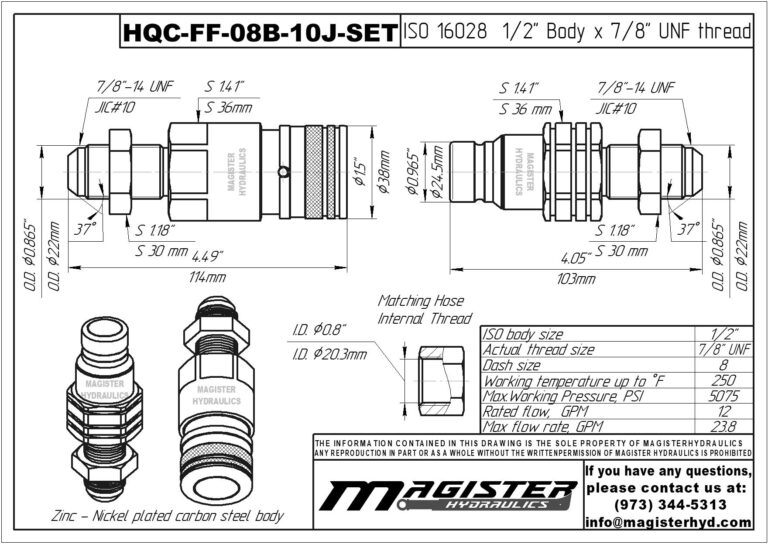

QUICK COUPLERS SIZE CHART
