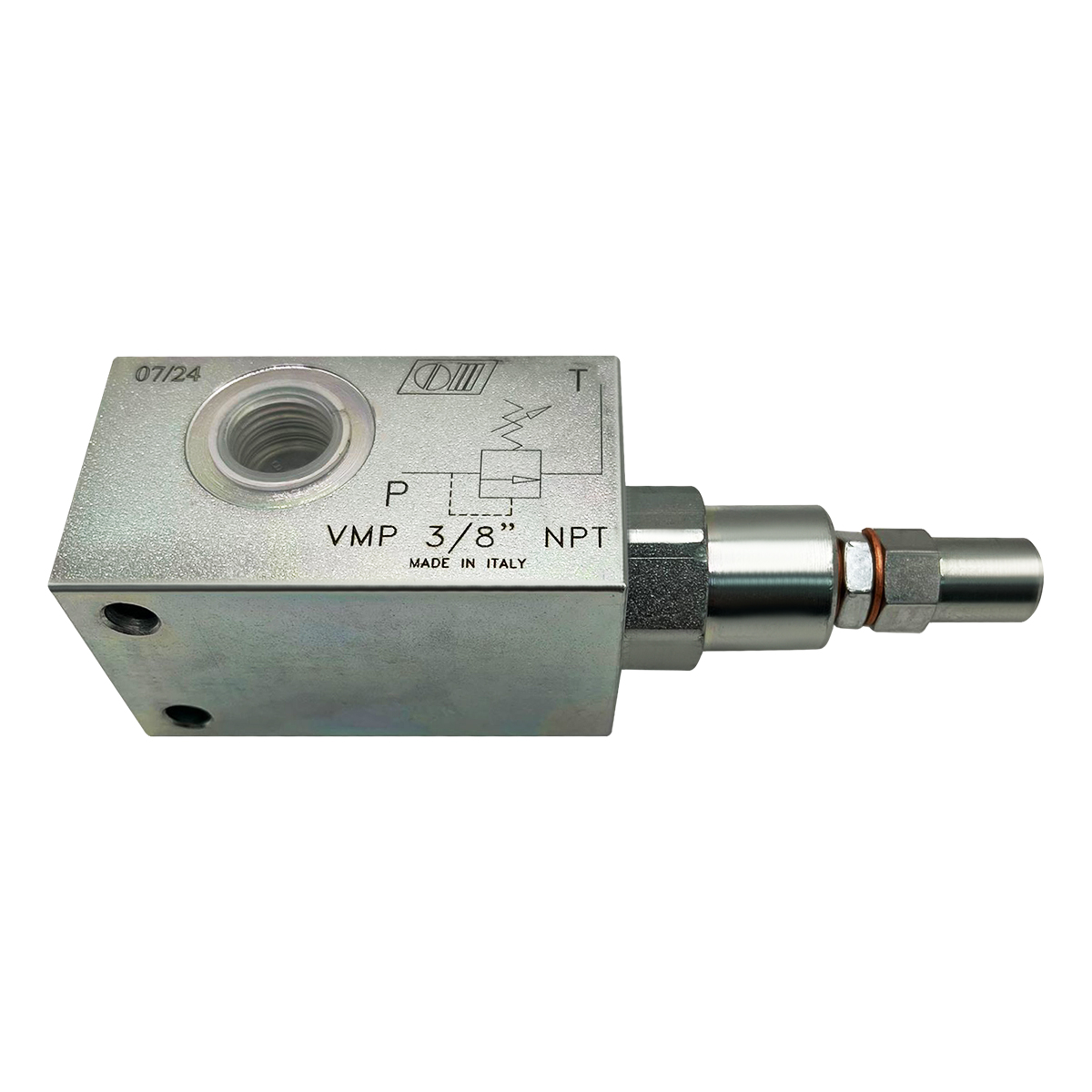

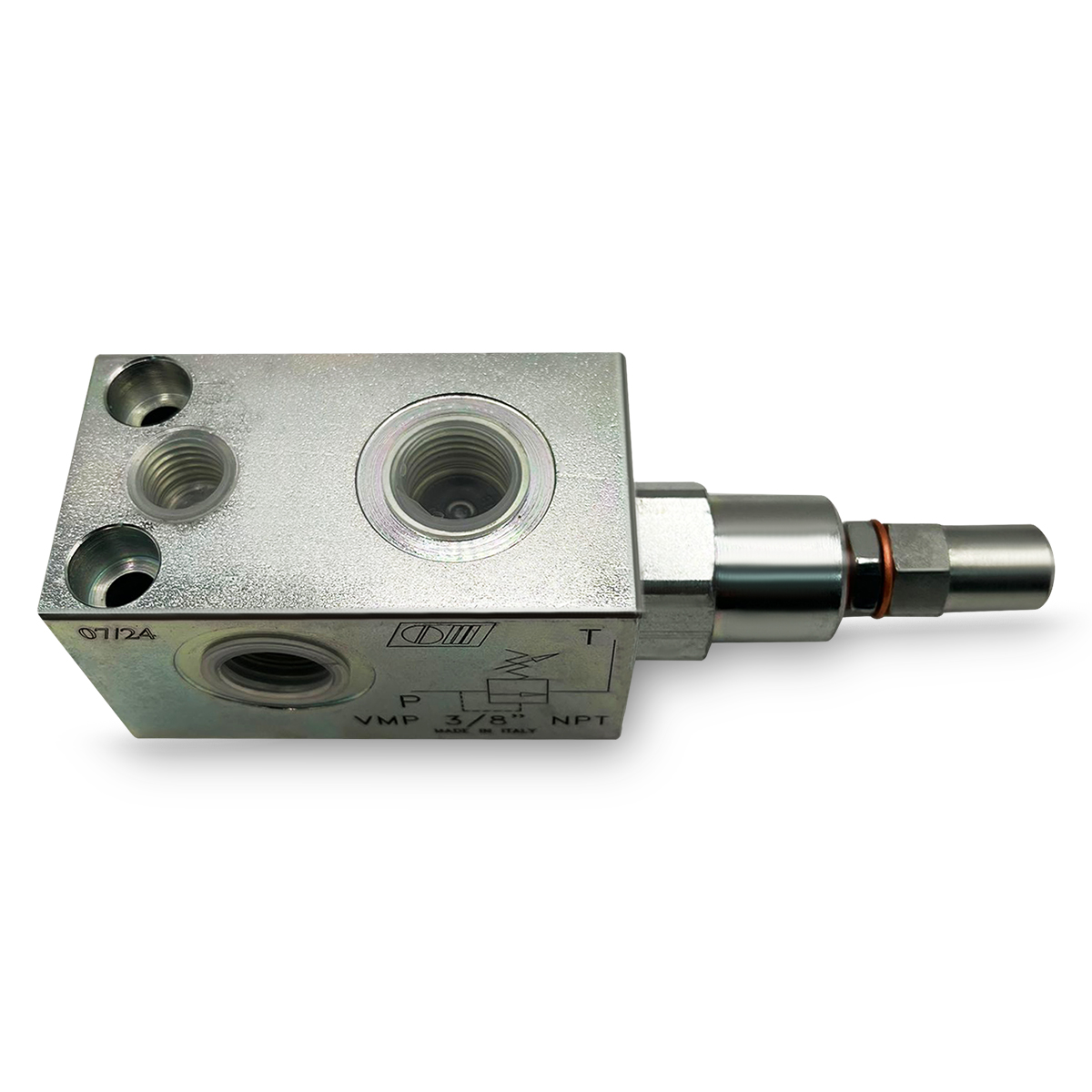

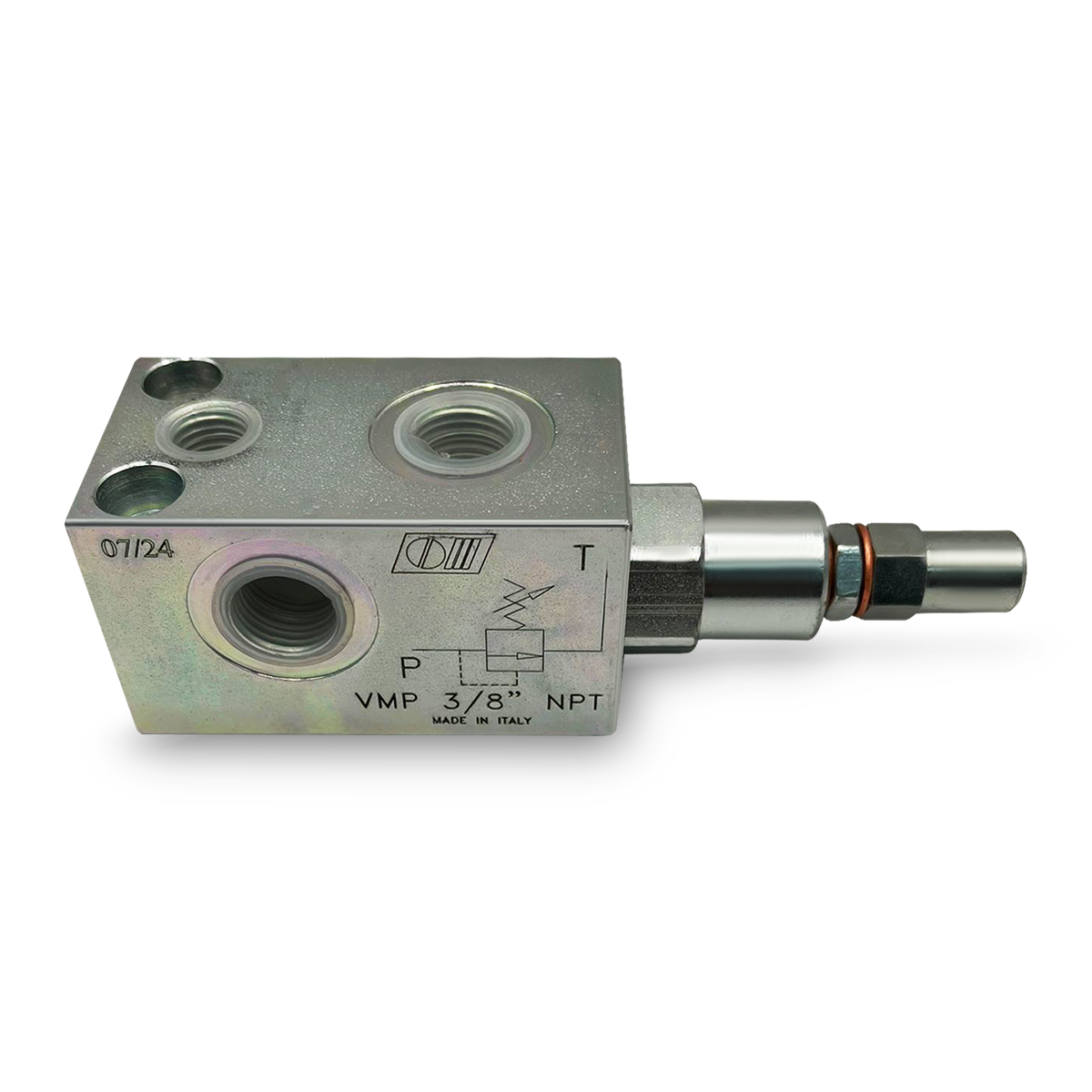

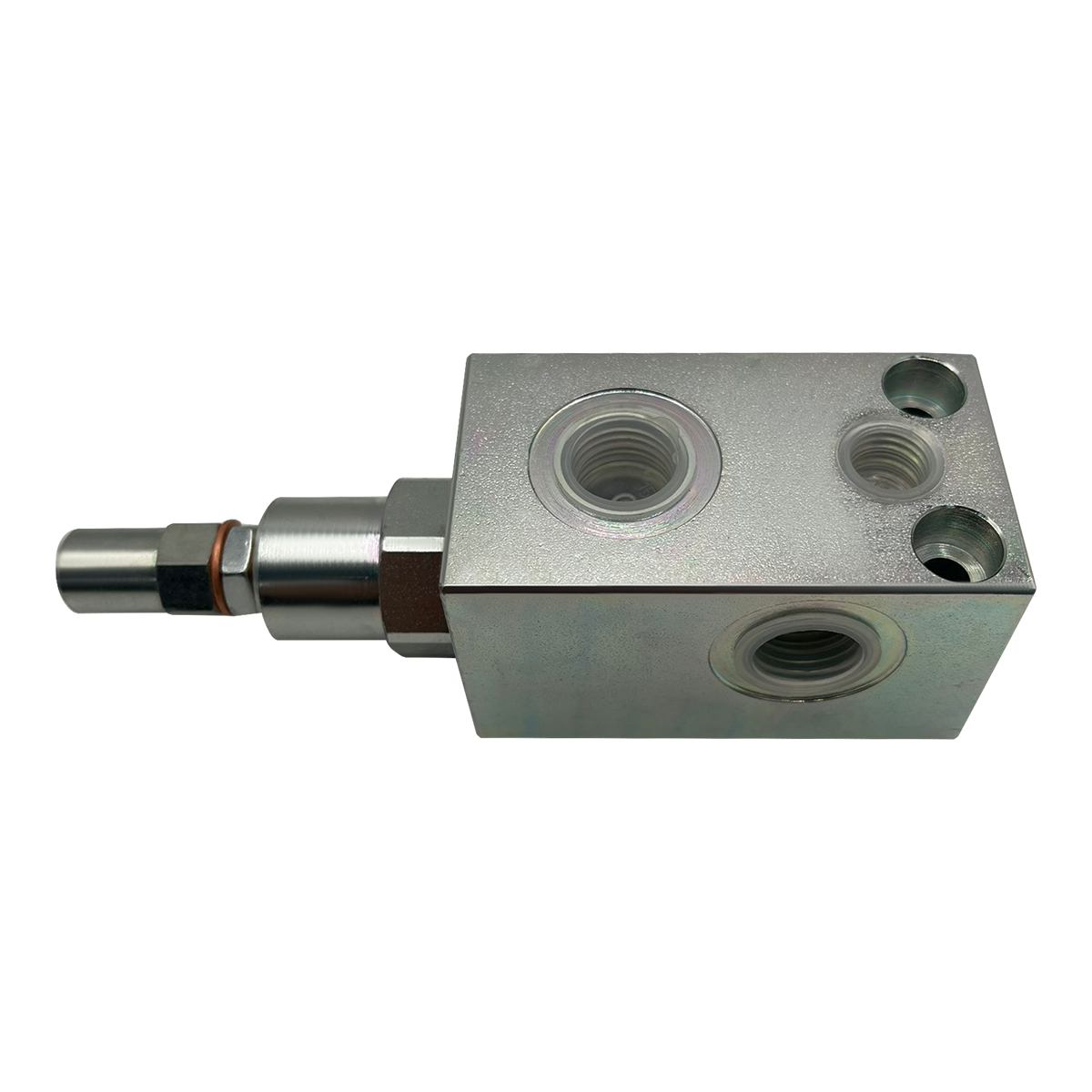

Hydraulic Inline Pressure Relief Valve, 3/8" NPT, 12 GPM
$48.00
* Wholesale Discount is available for this product if you purchase 5 or more products.SKU: HV-PRV-12-06N
| Flow : | 12 GPM | Max Pressure : | 5000 PSI | Working Ports : | 3/8" NPT | Pressure Gauge Port : | 1/4"-18 NPT | Brand : | Hydro-Pack | Weight : | 1.7 LBs |
|---|---|
| GTIN : | 850054386649 |
Volume discounts
5+ PRICE EA -5%
$45.60
10+ PRICE EA -10%
$43.20
Out of stock
Out of stock
Description
Hydraulic Inline Pressure Relief Valve, 3/8″ NPT, 12 GPM. The relief valve limits the maximum pressure in a circuit to the valve’s setting. When the circuit pressure reaches the setting, the valve opens and stops the circuit pressure going any higher.
MATERIALS AND FEATURES:
- Body: zinc-plated steel.
- Internal parts: hardened and ground steel.
- Seals: BUNA N standard.
- Leakage: Guided poppet – negligible leakage.
CONNECTIONS:

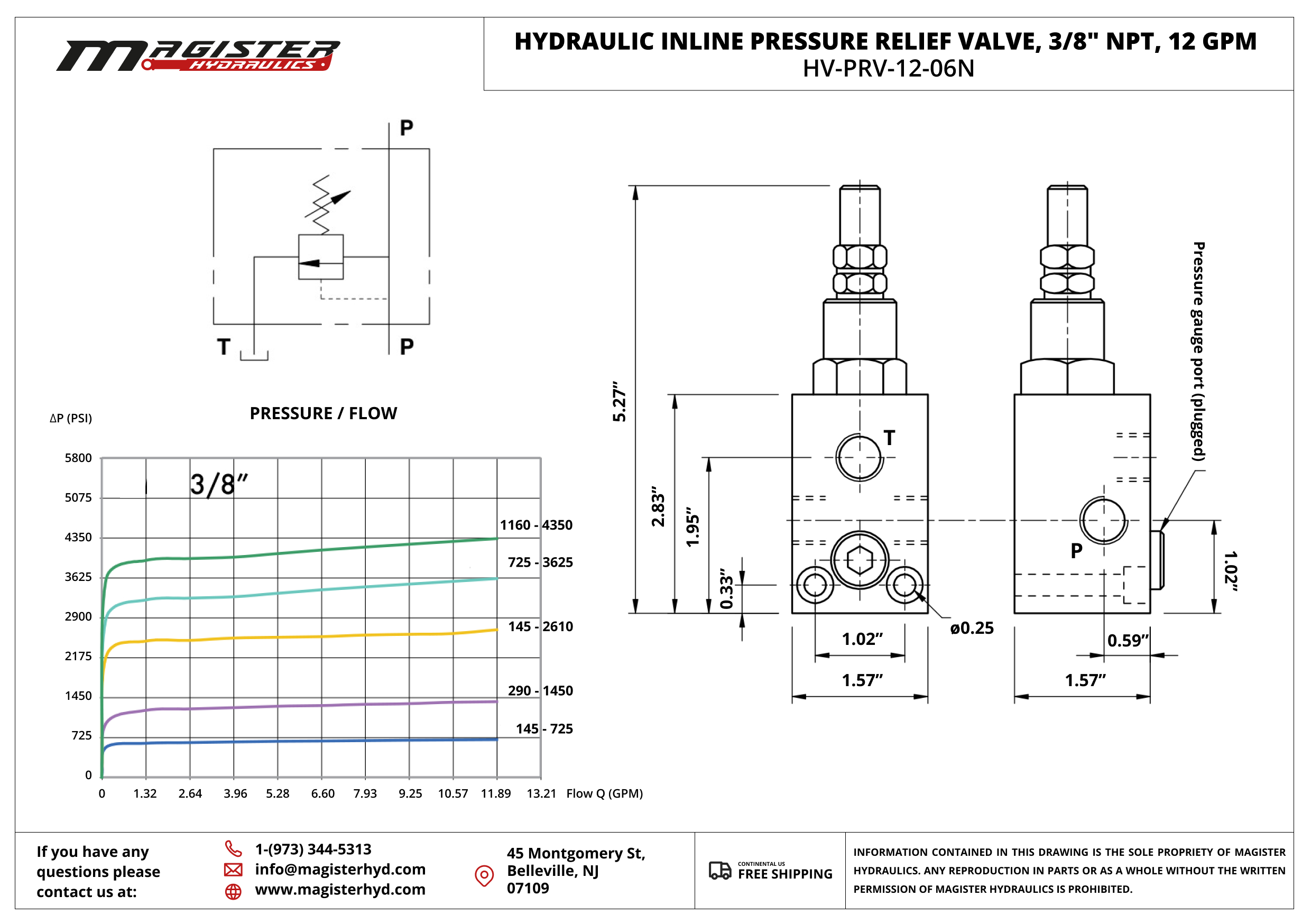

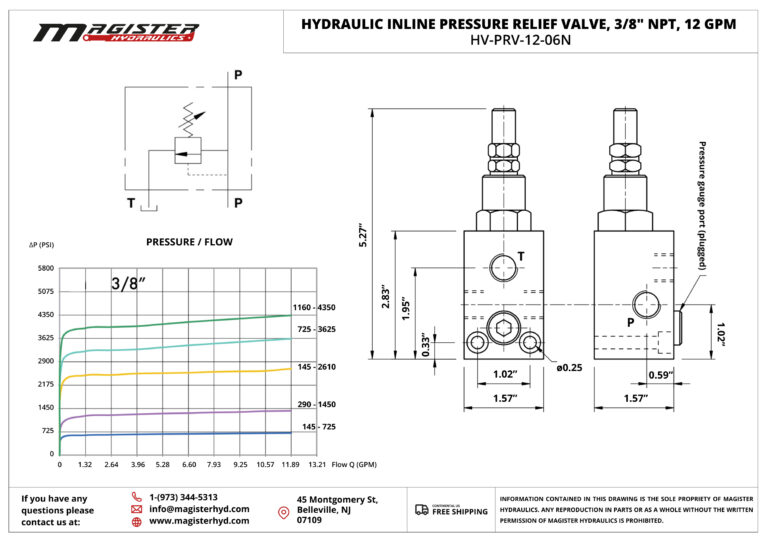

Connect circuit port with pressure to P and tank port to T. Port P is reversible.
Pressure Gauge Port (M Port) is 1/4″-18 NPT Thread size.
Oil temperature: 122° F
Oil viscosity: 30 cSt
Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe. 1 Year Warranty.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313
