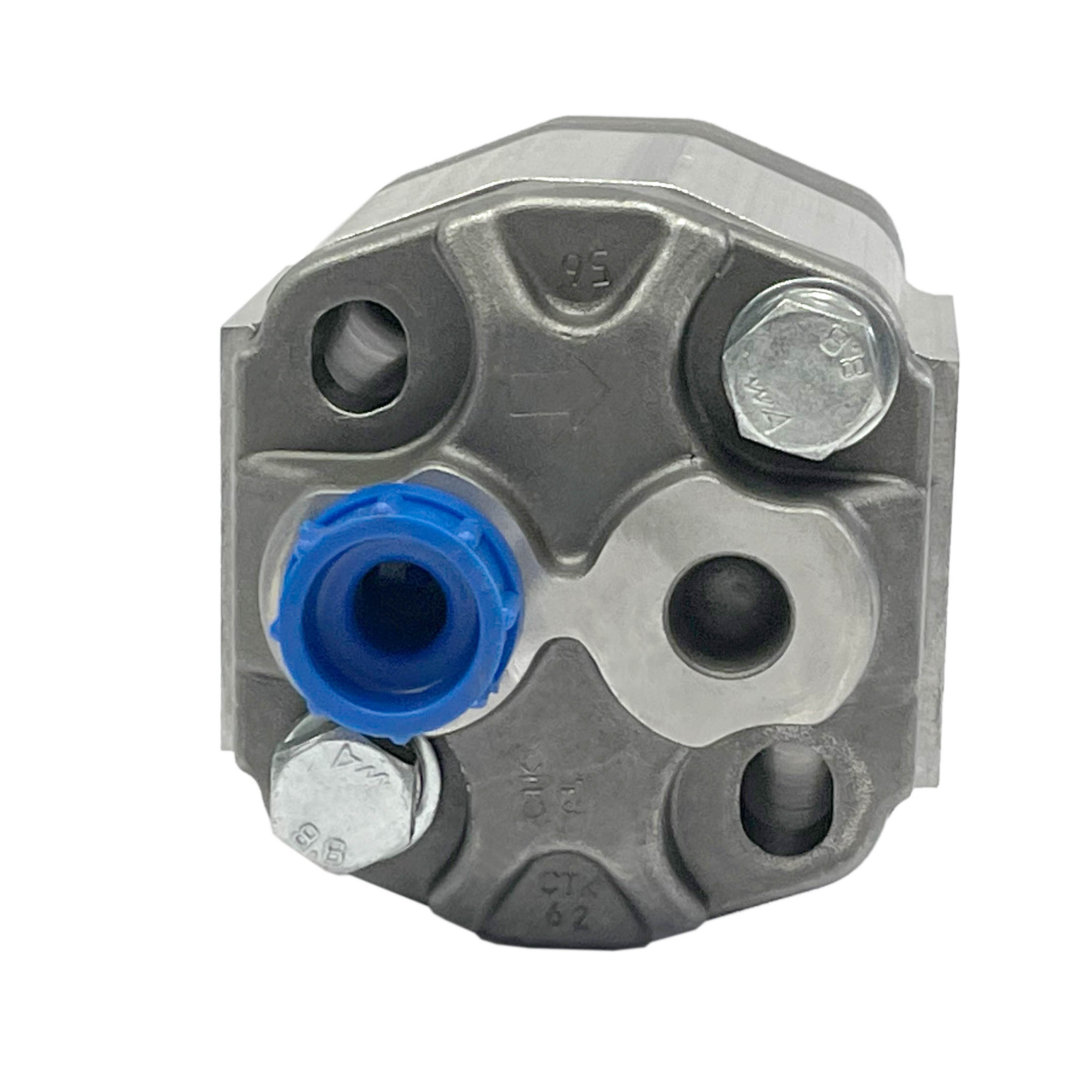

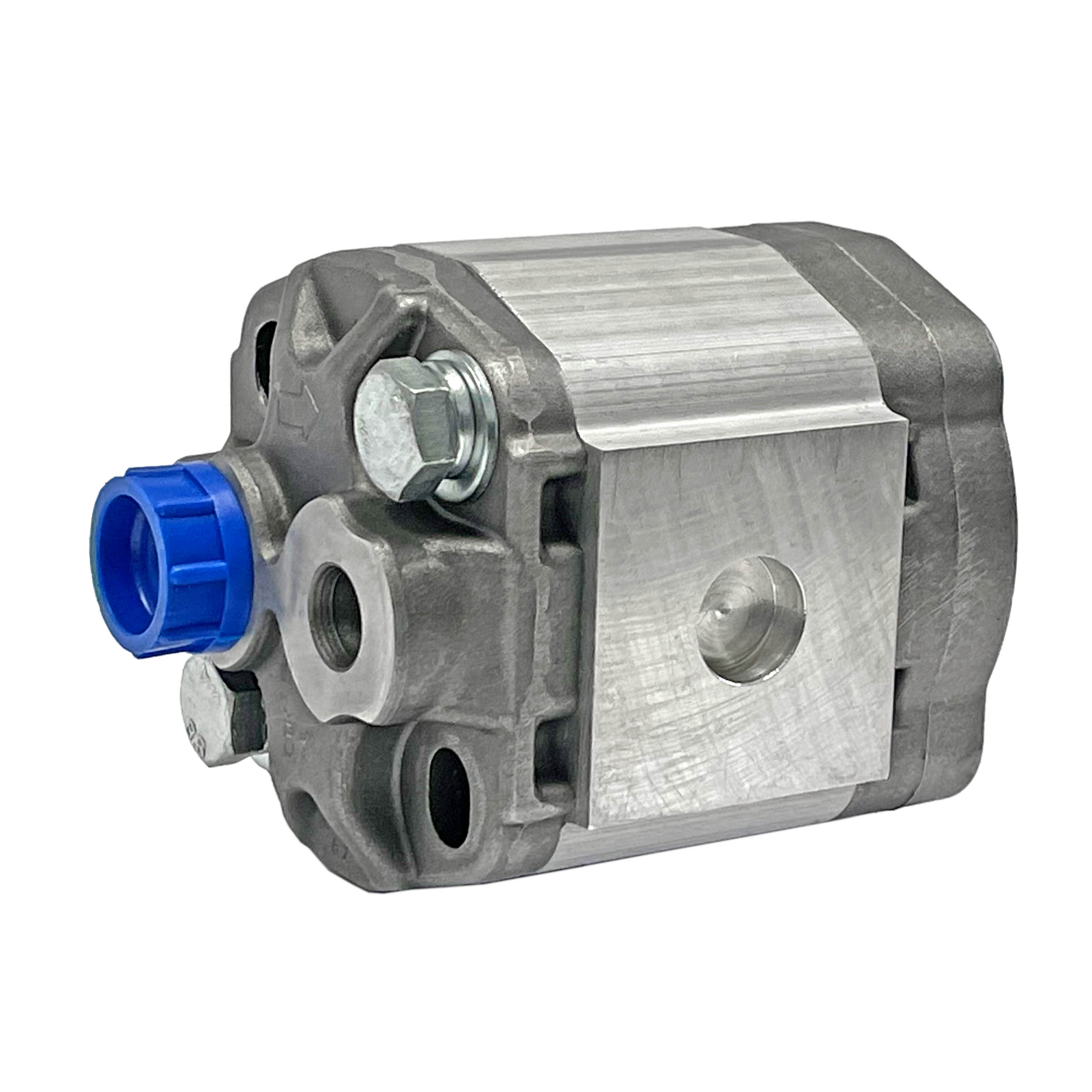

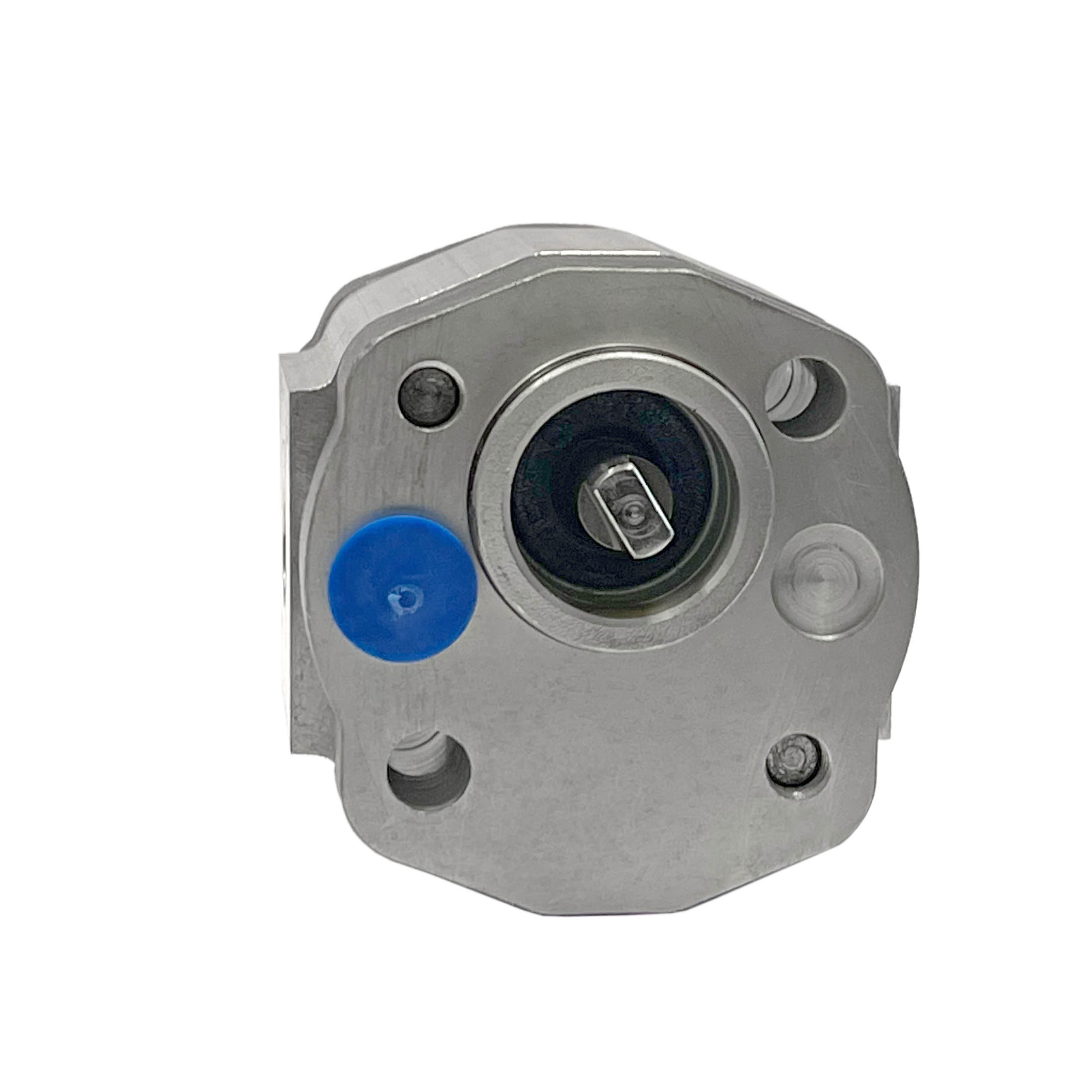

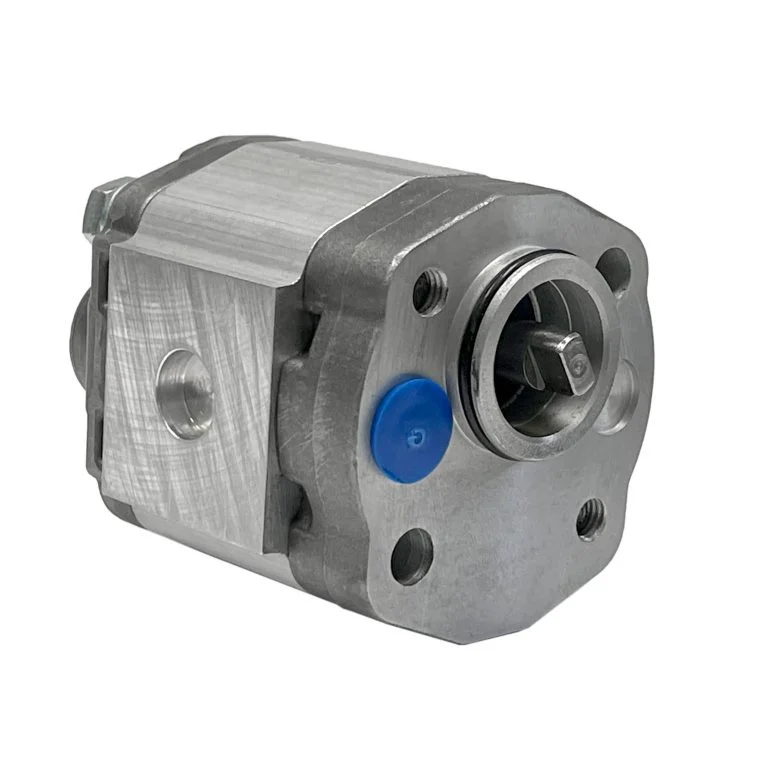

2.8 CC mini hydraulic gear pump flat tang shaft CCW

The Magister Hydraulics 2.8 CC aluminum mini hydraulic gear pump is designed for reliable operation in compact hydraulic systems, power units, and power packs. Featuring a durable flat tang shaft, Counter-Clockwise (CCW / Left-Hand) rotation, and through-bolt mounting flange, this pump delivers consistent performance in demanding applications.

Key Features & Benefits:

• Lightweight & Durable: Aluminum housing provides strength, corrosion resistance, and reduced weight.
• High-Pressure Capability: Supports up to 3900 PSI for powerful and stable hydraulic operation.
• Compact Design: Ideal for installation inside oil reservoirs in power units and power packs.

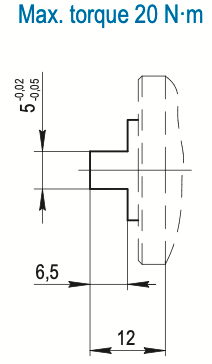

• Reliable Shaft System: Flat tang shaft ensures secure power transmission.
• Precise Rotation: Designed for Counter-Clockwise (CCW / Left-Hand) rotation systems.

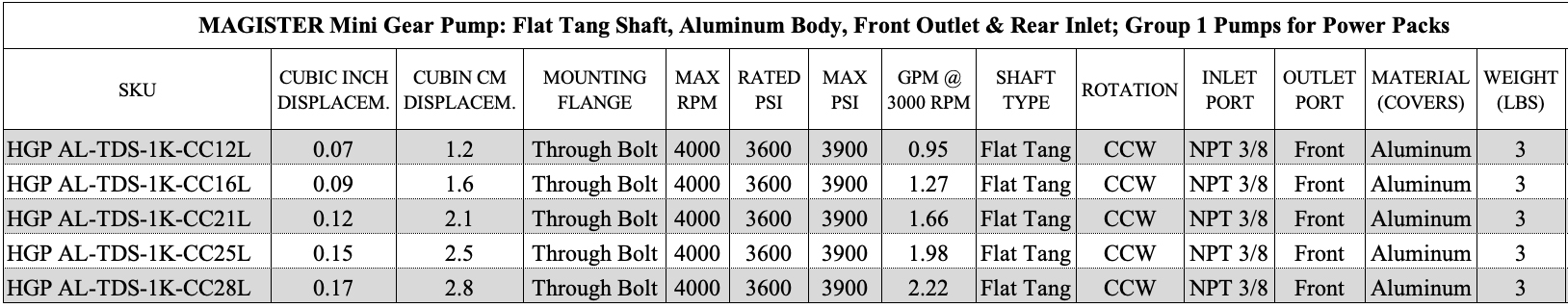

• Optimal Flow: 0.17 cubic inch displacement (2.22 GPM @ 3000 RPM) provides the right flow for a variety of mid-duty applications.
• High-Speed Performance: Operates up to 4000 RPM for efficient hydraulic flow.

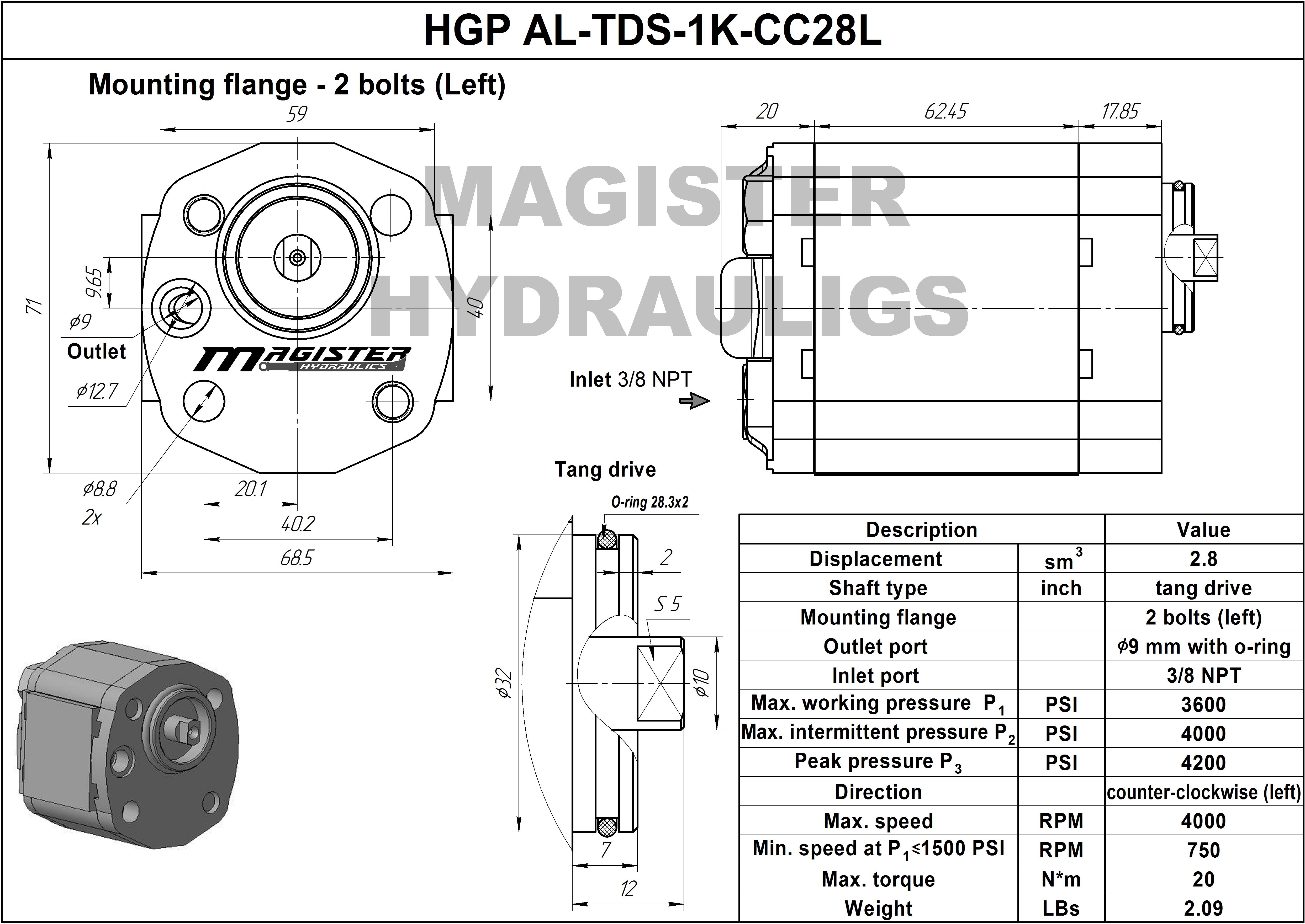

• Easy Installation: Through-bolt mounting flange allows fast and secure mounting.

Front outlet and rear inlet ports.

1-Year Warranty.

Same Day Free Shipping.

Made in Europe.

If you need assistance choosing the correct hydraulic gear pump replacement, please contact us:

973-344-5313
